Anti Corrosion Heavy Duty Telephone / Stainless Steel Telephone for Industry
Anti-vandal Heavy Duty Phone, Desk Telephone for Industry, Power Plants Telephones
The Handset Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
MAIN FEATURES
- Standard Analogue phone or VoIP phone
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Magnetic reed hook switch
- Full Rugged & durable keypad, easy to operate
- Desk mounting, simple installation
- Weather proof protection from IP54 to IP65
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, ISO9001, ROHS compliant
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE

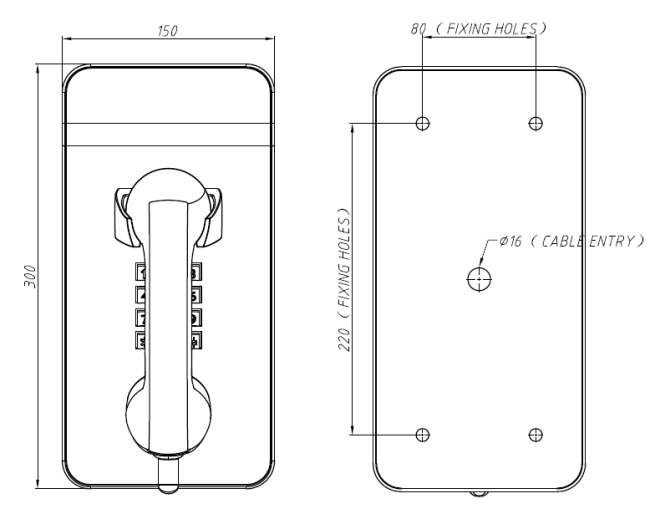

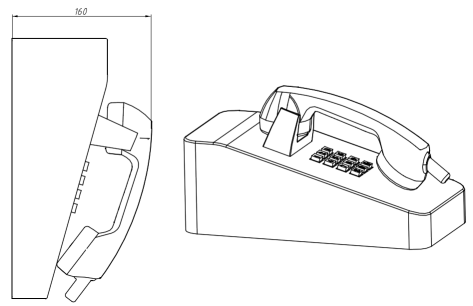

Unit size: 300 *150 *160 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: Pearl cotton, Carton
Net weight: 3 KG
Gross weight: 4 KG
