Red Industrial Weatherproof Telephone Post With Aluminum Alloy Die Casting Body
Weatherproof Hands-free Shipboard Telephones, IP67 Emergency Phone Post for Industry
This watertight handsfree intercom is ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue phone, or SIP phone
- Aluminum alloy die-casting body
- Weather proof protection to IP67
- Vandal resistant metal button
- Hands free operation
- One button for emergency call
- Wall/ Pillar mounting, tamper resistant fixings, simple installation
- Fast-fit terminal connection
- Programmable for speed-dial (PPT)
- Can be programmed remotely by tone phone
- Phone line powered (Analogue)
- External power supply or PoE
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
OPTIONAL
- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
TECHNICAL PARAMETERS
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package Information

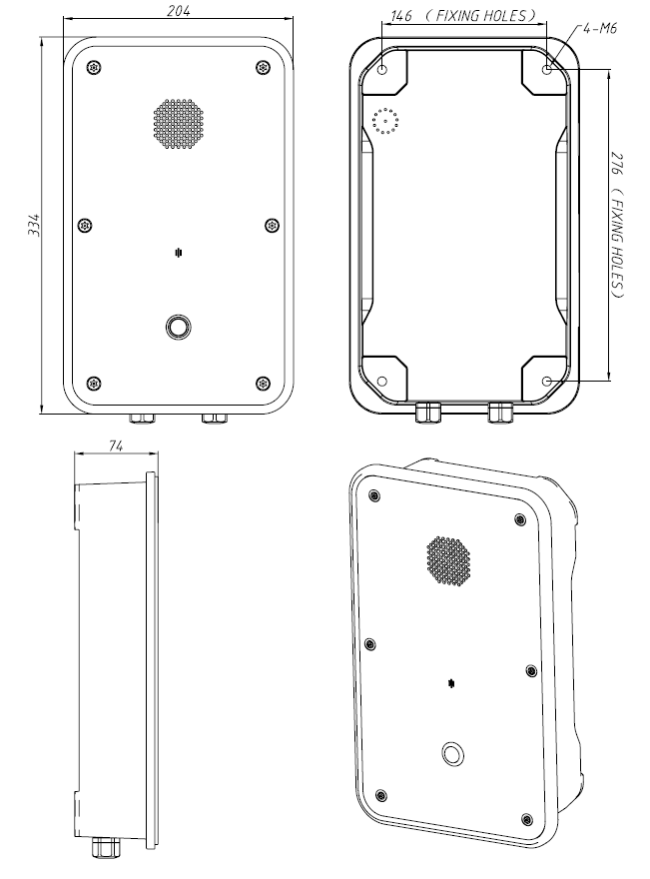

Unit size: 204 *334 *74 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Gross weight: 6 KG
Net weight: 5 KG
