Dustproof Industrial Weatherproof Telephone , Lockable Emergency Industrial Wall Phone Box
Dustproof Industrial Weatherproof Telephone , Lockable Emergency Industrial Wall Phone Box
This weatherproof telephone JR101-FK is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while thebutton is weather and vandal resistant.
Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Main Features:
- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Weather proof protection to IP67
- Key lockable latch
- Vandal resistant handset and armored cord
- Full keypad with memory
- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Optional
- Add Horn & Lamp on the top
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
Technical Specifications
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | ||
| Power Supply | 12V DC | |
| Power Consumption | -Idle:0.3W -Active: 1.5W |
|
| Communication Type | Full duplex | |
| Ringer volume | 90~95dB(A) at a distance of 1 m | |
| Program Method | Remote programming by SMS | |
| Frequency |
A version: - Dual-Band WCDMA/HSDPA 850/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz |
|
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package

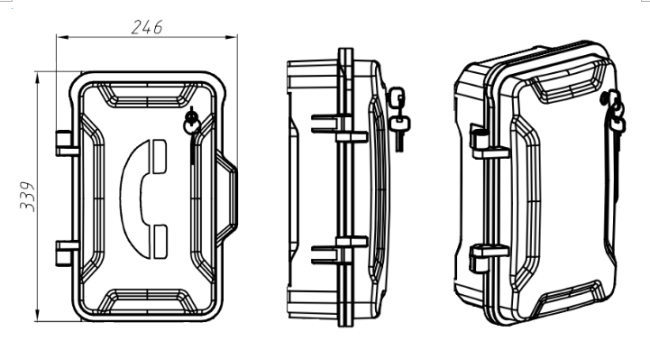

Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
