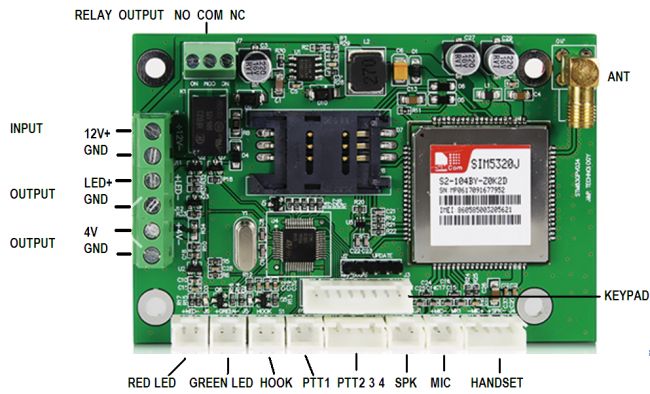

Industrial 3G Telephone Circuit Board , Telephone Spare Parts 3G PCB

Industrial 3G Telephone Circuit Board, 3G PCB for Heavy Duty Industry

Main Features

- One push button for SOS

- Call Standard SIM card

- Working Frequency Range: WCDMA850/1900/2100MHz

                                               GSM850/900/1800/1900MHz

- Operating voltage : 7.4 V-12V

- Can be DC powered or Battery Powered

- Idle current: 75mA

- Off hook current: 160mA

Remote Programming call number

Each unit can be simply reprogrammed from any location by SMS code. The Unit will send a confirmation “SMS” to the sender showing the new numbers programmed.

Automatic Diagnostic reporting

The Unit will automatically send a message when one or more of the following conditions occur.

1). Battery state below 9V

2). Faulty switch or keypad

3). LED indicator condition

Manual Fault diagnosis

Upon requesting a Fault Diagnosis from the phone, the following information will be sent in the form of an ”SMS” as below, It will save your time and cost to check the phone status by being on-site.

1). Signal status

2). Battery status

3). Keypad/Switch status

4). Indicator light condition

5). Preprogrammed Call number

6). Preprogrammed SMS reporting number

Applications 0f JR 3G Telephone Circuit

This VoIP Telephone Circuit is ideal for railway applications, tunnels, highways, campus, parking lot, power stations, oil&gas station, marine applications, underground mining, retail banking, clean rooms, firefighter, taxi, industrial, prisons, parking-lots, power stations, chemical plants, etc.

Other characteristics of JR 3G Telephone Circuit

handheld, emergency, handsfree, auto dial, for harsh environments, with LCD display, with video camera, paging, ringdown, outdoor, built-in, with loudspeaker, with flashing beacon, with indicator lights
