VOIP / SIP Outdoor Emergency Telephone , Vandal Proof Telephone IP67 Waterproof
VOIP/SIP Industrial Telephone,Railway tunnel telephones,IP67 waterproof rugged telephones

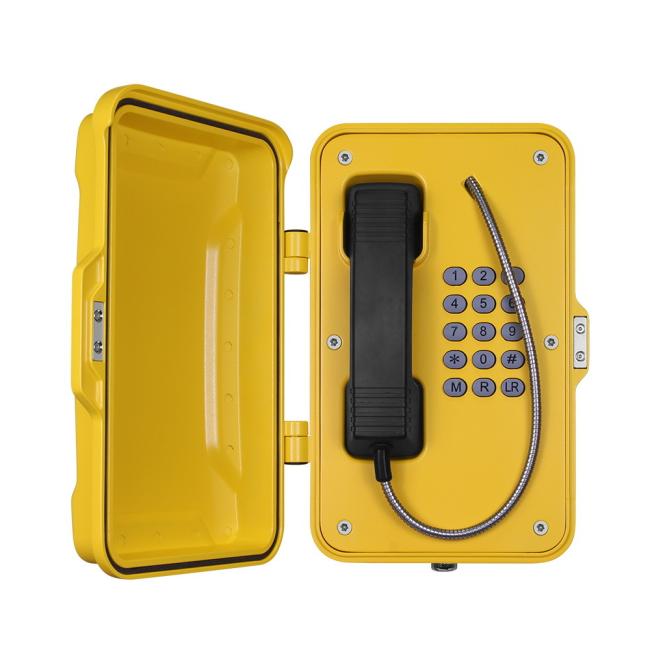

This weatherproof telephone is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case with a pivoted door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Application:
This weatherproof telephone has been widely applicate for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Main Features:
- Available in 3 versoins (Analog, SIP/ VoIP, and GSM/3G)
- Robust housing, constructed of Aluminum alloy
- Vandal resistant handset and armored cord
- Weather proof protection to IP67
- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Wall/ Pillar mounting, simple installation
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button
“LR” button for last number redial
“R” for flash recall
“M” for muting
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
