Public IP68 Industrial Weatherproof Telephone With Cast Aluminum Enclosure
public IP68 rugged cell phone housed in weatherproof cast aluminum enclosure
Product Description
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

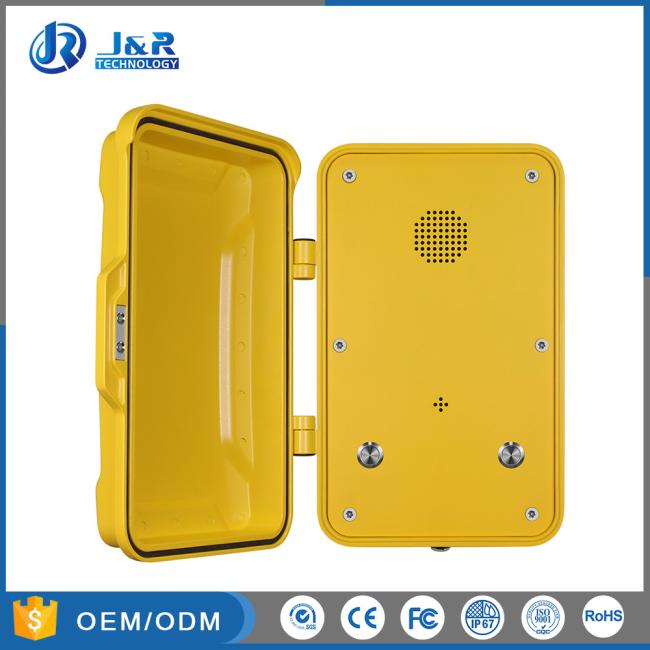

The Help Point is a rugged, public access hands-free telephone housed in a yellow enclousure. It offer a high level of vandal resistant with matal buttons and wall or flush mount design without handset.
It's finished in contrasting colours with a raised 32mm button. Raised text and Brille is included on a colour contrasted panel. Inductive loop is standard. 2 auto-dialler buttons labelled "information" and "emergency", 2 auto-dialler can be configured to dial two stored number or as a "hotling", where exchange routes the call.
Specification
Standard Analogue phone or SIP phone
Aluminum alloy die-casting body
Vandal resistant metal button
Handsfree operation
Two button for emergency call
Weather proof protection to IP66
Wall mounting, simple installation
Phone line powered(Analogue)
External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone
CE, FCC, ROSH compliant
Application
It is full electronic, weather and vandal resistant. It provides hands-free, loud-speaking communication for any quick area. Incoming calls are indicated by flashing LED and audible tone. The help point backbox can be sold as seperate. Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Feature
| Casing Material | Die cast aluminium body, cold rolled steel paceplate epoxy powder coated. |
| Colors | Yellow, other colors to special order |
| Handset Material | No handset |
| Keypad | No Keypad |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP66 |
| Ringing Tone | Shrill warble tone 90 dBA @ 1 metre typical |
| Hook switch | No hook switch |
| Push button | Vandal resistant stainless steel button |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 6 kg depending on option |

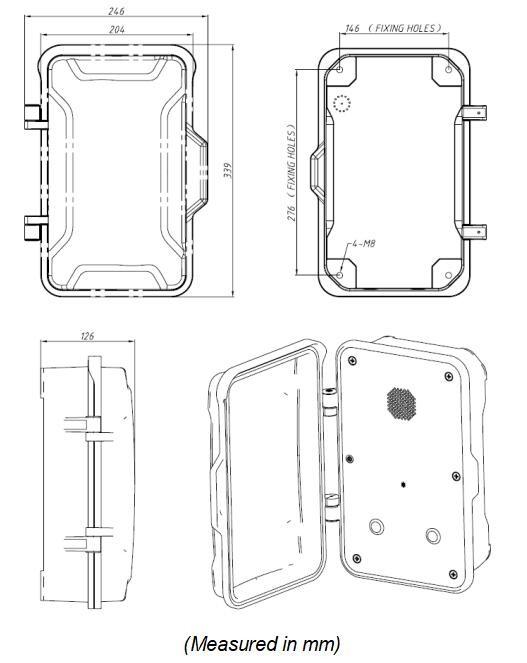

| Unit size | 339*246*126 (mm) |
| Carton size | 200*300*440 (mm ) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 6KG |
| Gross weight | 7KG |
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
