Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy
『Product Description』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
JR103-CB is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.
| Relative humidity high | 93% R.H at 40°C (non condensing) |
|---|---|
| Casing Material | Heavy Duty aluminium (salt & corrosion resistant) |
| Excellent Sound Quality | STI approved to 0.9 (Excellent Sound) |
| Quality of Service (QoS) | ensuring optimal delivery of voice |
| Type of Service (ToS) | high throughput and reliability (RFC3168) |
| Remote Management | Available with remote management software,to simplify installation and cut maintenance costs |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
|
Ringer Volume
|
- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption |
-Idle:1.5W -Active:1.8W
|
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
|
Ringer volume
|
- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
|
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W
|
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
|
|
A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
『Features』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
▧ Standard Analogue phone/ SIP phone
▧ Vandal resistant handset and cord
▧ Weather proof protection to IP66
▧ Wall mounting, Easy for installation
▧ Inductive coupler fitted as standard for hard of hearing

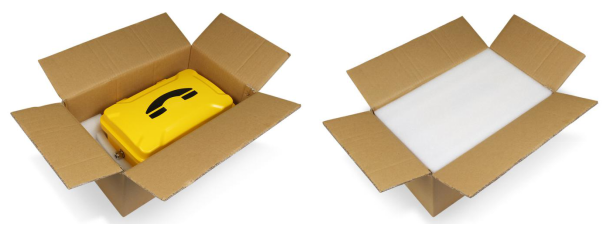

『Packing & Delivery』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
| Unit size | 334*204*109 (mm) |
|---|---|
| Carton size | 200*300*440 (mm) |
| Packaging materials | pearl cotton, carton |
| Net weight | 5 KG |
| Gross weight | 6 KG |
| Port | Shenzhen | ||||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Pieces) | 1-10 | 11-50 | 51-200 | >200 |
| Est. Time(days) | 1 | 10 | 20 | To be negotiated | |
『Application』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
『Our Company』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
『FAQ』
IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area
₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
Q: Do you have any MOQ limit for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Low MOQ, 1pc is available
Q: What about the lead time for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.
And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q:Will you do OEM or Customzied work for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Yes. Any OEM/ODM/Customzied work are welcomed!!! Pls send your email to us about it.
Q: How is your after sell service?
A: 2 years warranty time, 7*24 hours online professional technical support!!!
If you have more questions, Pls kindly contact with us, Thank you.
