VoIP Industrial Weatherproof Telephone 75-90db Ringing Volume 2 Years Warranty
⎾ Product Description ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer

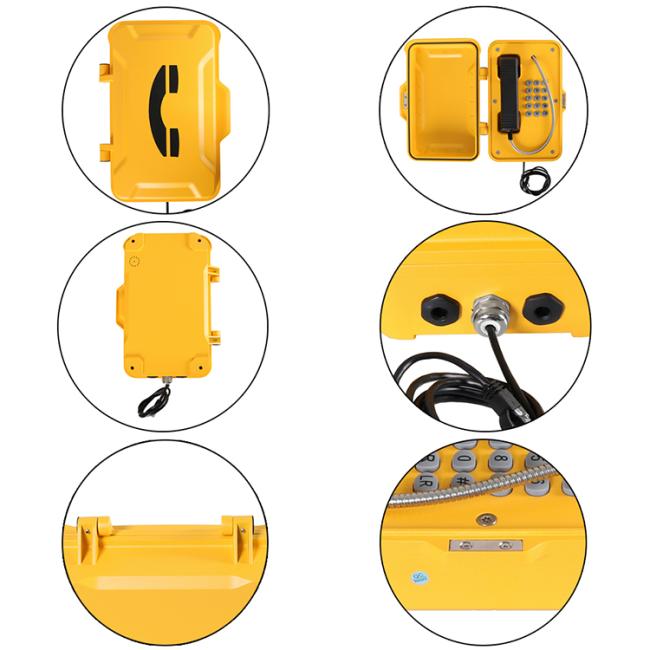

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

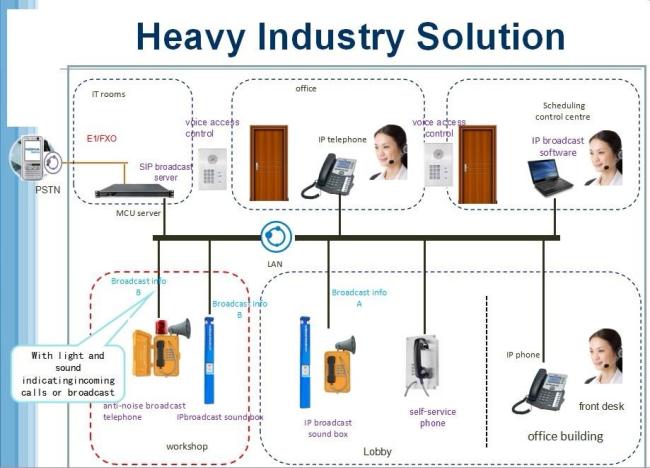

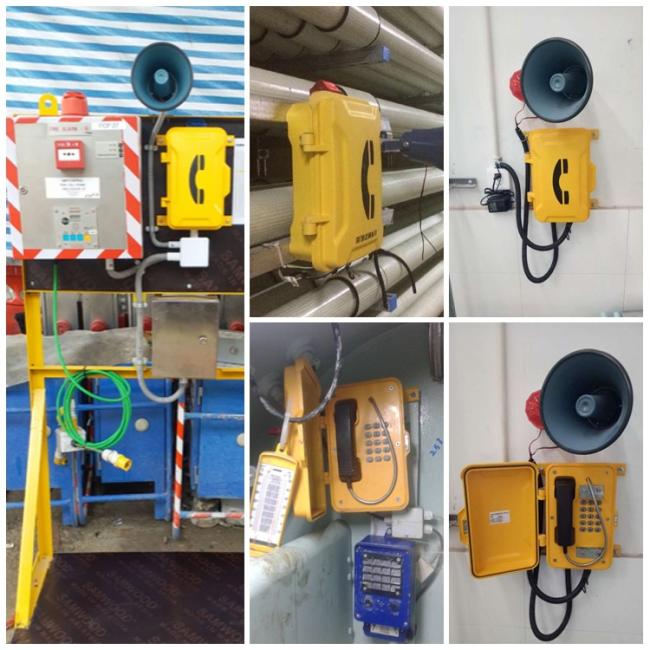

The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
| Casing Material | Die cast aluminium, epoxy powder coated |
| Colors | Yellow, other colors to special order |
| Handset Material | Cycoloy with stainless steel spiral cord |
| Keypad | Rubber Keypad |
| Temperature | Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP67 |
| Ringing Tone | Shrill warble tone 80 dB A at 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using Relative humidity:Up to 95% (non-condensing) |
| Weight | Up to 6 kg depending on option |
⎾ Technical Specification ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
⎾ Features ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer
★ All weather protection IP67
★ Magnetic reed hook switch to reduce parts subject to wear
★ Stainless steel armoured handset cord
★ Weatherproof and corrosion resistant handset
⎾ Packing & Delivery ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer

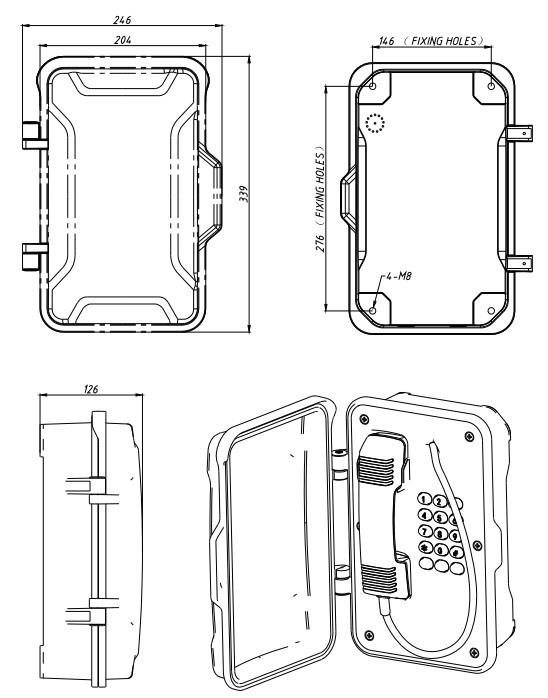

| Unit Size | 204 *334 *162(mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 7 KG |
| Gross Weight | 8 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
⎾ Our Services ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After delivered the goods, we will track the products for you once every two days, until you get the products.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
⎾ Our Company ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company
and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
⎾ FAQ ⏌
Industrial Telephone with Keypad, VoIP Weatherproof Telephone Manufacturer
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
