Stainless Steel Ip65 Sos Handsfree Telephone SIP DTMF JR313-2B
JR313-2B Handsfree Telephone SOS Outdoor Telephone IP65 Emergency Phones
Product Description
The Emergency Telephone are based on a stainless steel panel and provide a clear hands-free, loud-speakingoperation for any public area.
Manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
The Emergency Telephones has been designed to meet the needs of clients who experience loss through vandalism. However, the telephone is extremely simple to install and offers a convenience solution to a range of telephone siting problems.

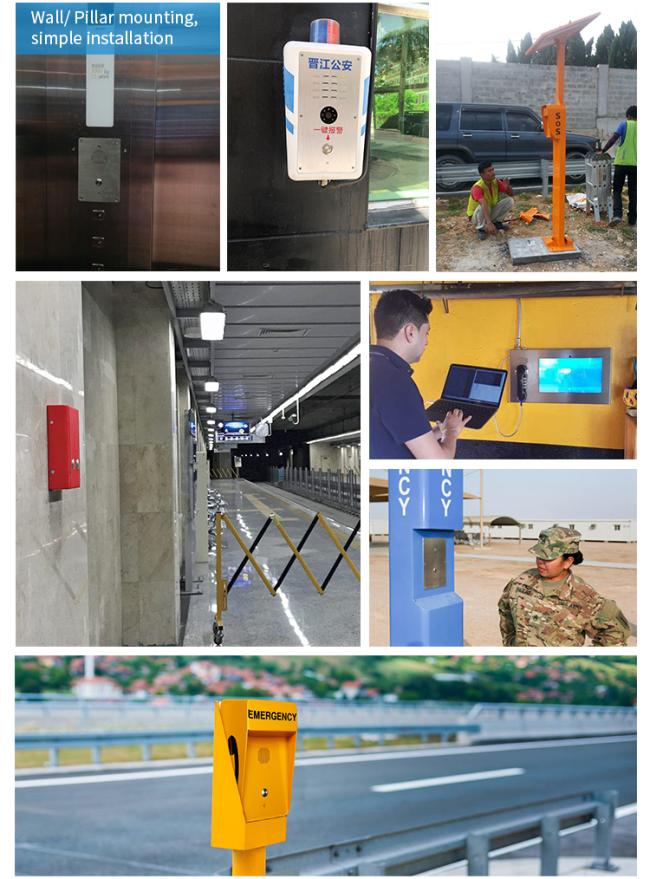

Ideal for prisons, court houses, rail platforms, car-parks, police stations, outside buildings, gate entry, etc.
|
Casing Material |
Cold rolled steel body |
|
Colors |
RED, YELLOW, GREY |
|
Handset Material |
No handset |
|
Keypad |
No keypad |
|
Temperature |
Operating: -30°C to +70°C Storing: -40°C to +75°C |
|
Weather Resistance |
IP65 |
|
Ringing Tone |
Shrill warble tone 80 dBA @ 1 metre typical |
|
Hook switch |
Electronic / magnetic with no visible moving parts |
|
M.T.B.F. |
Calculated to have an M.T.B.F. in excess of 50,000 hours using |
|
Weight |
Up to 1 kg depending on option |
Features
JR313-2B handsfree telephone sos outdoor telephone ip65 emergency phones
►Constructed in robust steel, vandal and mark resistant
►Can be used on most PBX system as an extension phone
►Voice-switched (VOX) semi-duplex or full-duplex operation
►Tone dialling (DTMF)
►Speech optimisation in noisy environment
►External power supply or PoE (SIP)
JR313-2B Handsfree Telephone SOS Outdoor Telephone IP65 Emergency Phones
| Analogue Version | |
| Power Supply | Telephone Line Powered |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80 dB (A) at 1m distance |
| Dialing Method |
DTMF mode in accordance with ITU-T recommendation Q.23. |
| Communication Type | Full duplex |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle: 1.5w -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | 90~95dB (A) at 1m distance |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption | Idle: 0.3W -Active: 1.5W |
| Communication Type | Full deplex |
| Ringer Volume | 90~95dB (A) at 1m distance |
| Program Method | Remote programming by SMS |
Packing
JR313-2B handsfree telephone sos outdoor telephone ip65 emergency phones
|
Unit size |
170 *130 *60(mm) |
|
Carton size |
200 *140 *100( mm ) |
|
Packaging materials |
pearl cotton, carton |
|
Net weight |
0.8 KG |
|
Gross weight |
1 KG |
Our Company
JR313-2B handsfree telephone sos outdoor telephone ip65 emergency phones

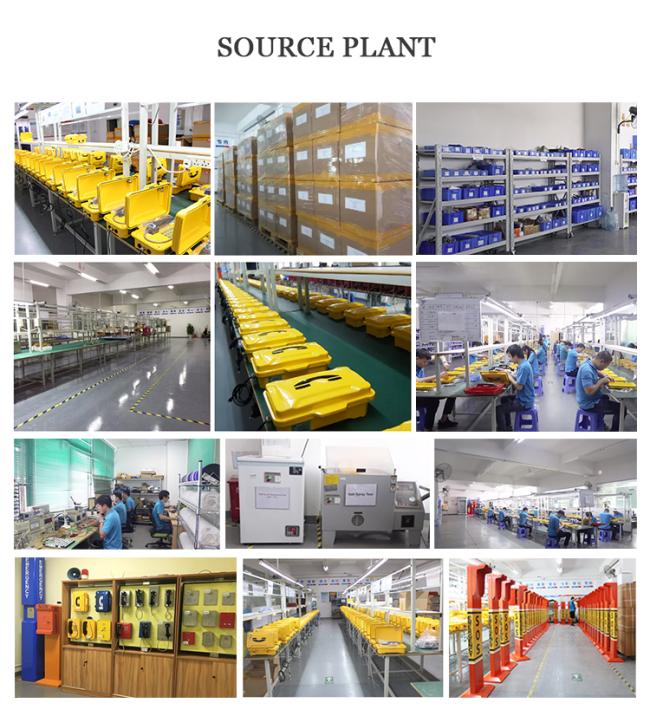

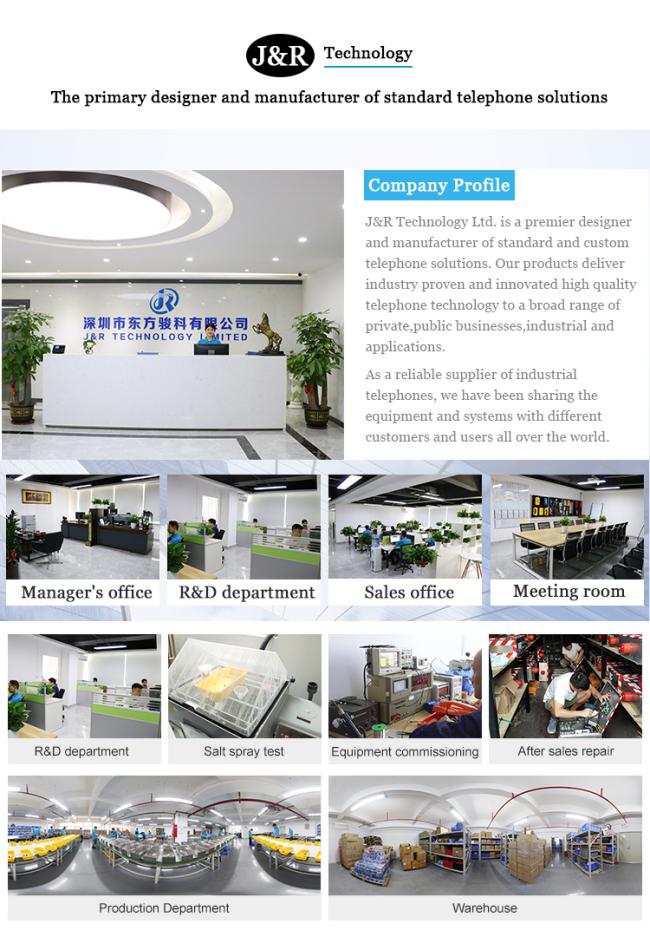

- J&R is China based design and manufacturer of rugged communications equipment.
- Our telephones and systems work, and last, in environments where regular products wouldn’t.(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G/4G version) .
- After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
- We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
