Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar
Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar
JR-TP-03 Emergency Telephone Pillar is an ideal security solution for remote and high-risk areas. Painted for outdoor use.
They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
- Emergency Telephone Pillar, painted for outdoor use. Can choose to add LED lights
- Mechanical characteristics: Sleek and harmonious design free of sharp edges, prepared for the containment of auxiliary circuits
- Material: Made of galvanized steel, It can be manufactured in stainless steel
- Colour: Custom black, Standard shipment is red (other colour on demand)
- Fixing: on floor
MAIN FEATURES
- There are 3 options for the connecting (Analogue, SIP, 3G / 4G)
- Programmable for speed-dialing (PPT)
- Weather protection IP67
- Can be programmed remotely
- Telephone line powered for analogue phone
- Additional power supply required for VoIP or GSM type
- The material of the tower is cold rolled steel with powder coated body
- Vandal-resistant structure and coating designed to resist extreme weather conditions
- A variety of signage, graphics and colors choices are available
- CE, FCC, RoHS, ISO9001 Compliant
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume |
- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption |
-Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume |
- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 67 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package Information
Unit size: 1510 *270 *210 (mm)
Packaging materials: Pearl cotton, Wooden Box
Net weight: 30 KG
Gross weight: 35 KG

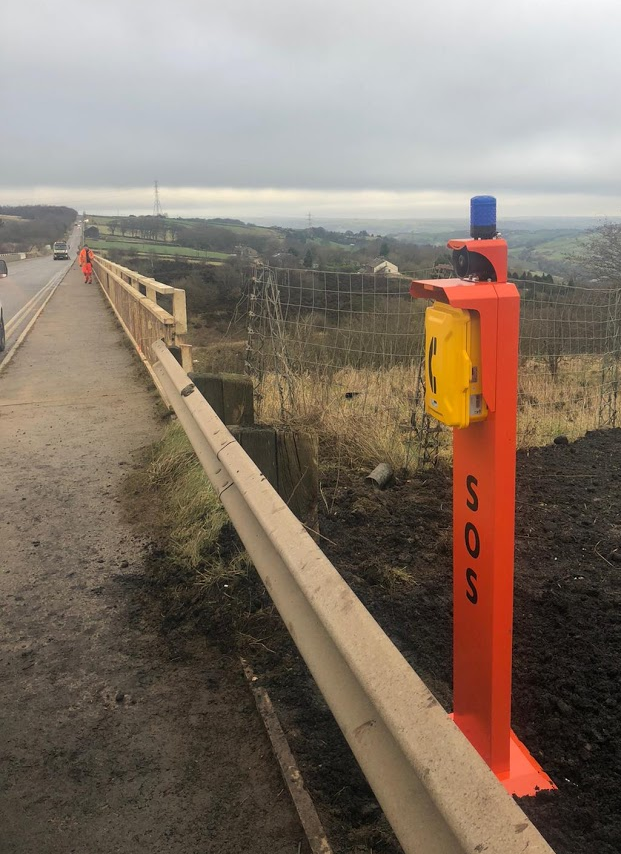

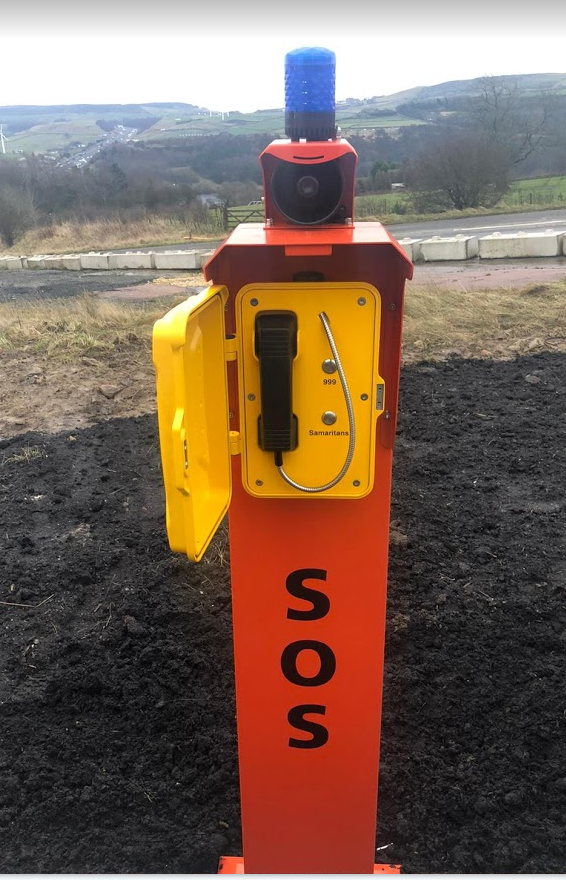

J&R Emergency Telephone Pillar are Installed Beside British Motorways
