1 Meg Ohm Resistor ESD Safe Silver Black Blue Metal Cordless Anti-static Wrist Band
1 Meg Ohm Resistor ESD Safe Silver Black Blue Metal Cordless Anti-static Wrist Band

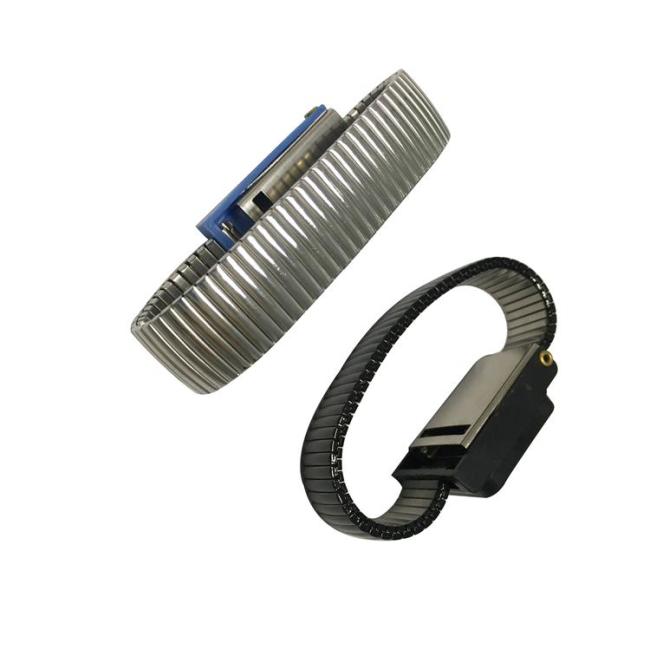

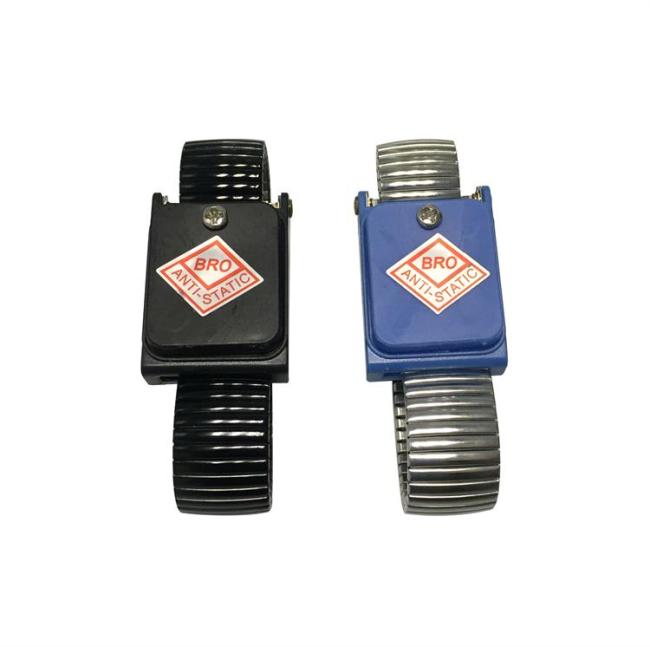

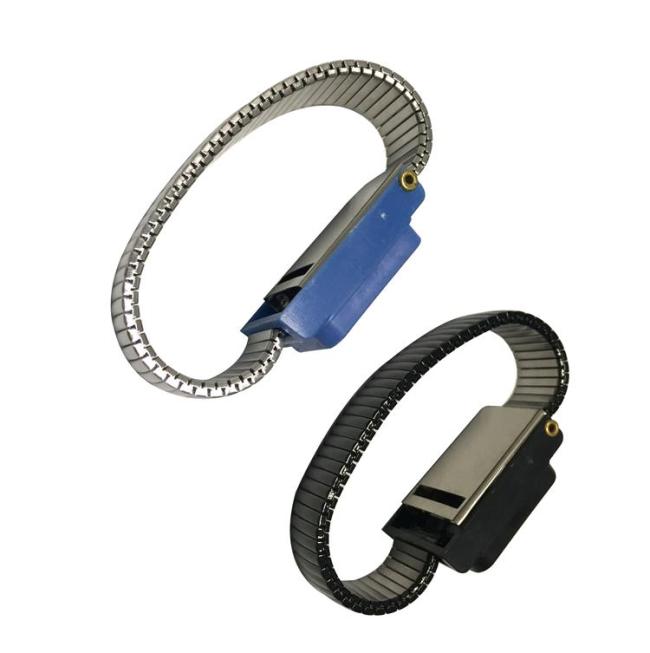

ESD Safe Cordless Metal Anti-static Wrist Strap Model ES0109
Descriptions:
It uses static voltage balance principle, to reach:
1, Adopt Corona discharge effect, effective remove electrostatic, and achieve static voltage balance
2, Can use this screw to do potential return to zero function
3, Can be used as circuit detection terminals.
It consists of conductive stainless steel metal band, and bound with a stainless steel plate.
Features:
- Designed to allow the operator to adjust the size (circumference: 14.5cm - 30cm) to their wrist
- No rust generated, meets or exceeds requirements of ANSI ESD standard
IMPORTANT NOTICE
Point A: Screw
Point B: Stainless steel
Point C: Conductive Metal
| Easy procedure for effectiveness testing | ||
| Test-point pair | Electric Resistance | |
| Good | A-B | 106Ohm < R < 107Ohm |
| A-C | 106Ohm < R < 107Ohm | |
| B-C | 102 Ohm < R < 107Ohm | |
| Bad | A-B | R>107Ohm re-inspect |
| B-C | R>107Ohm replace wrist strap | |
