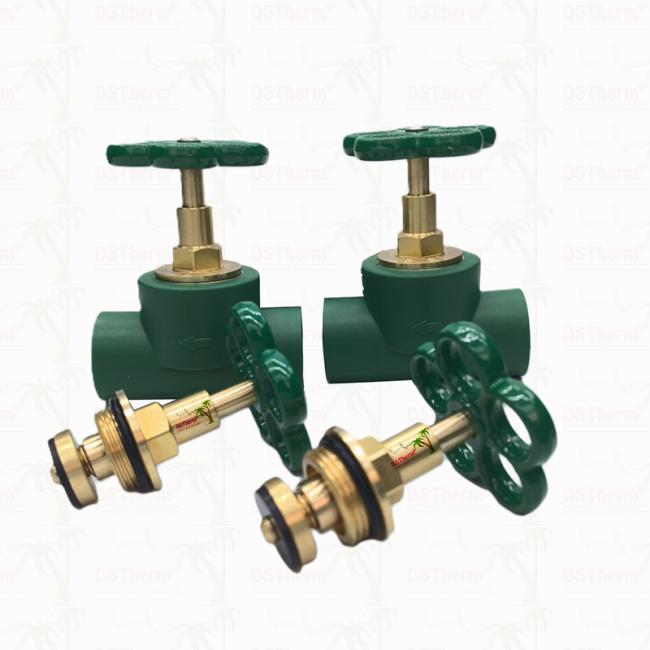

Customized Heavier Type Stop Valve Cartridge With Green Handle Brass Cartridge Brass Spindle Valve Top Part
Customized Heavier & Size Type Stop Valve Cartridge With Green Handle Brass Cartridge

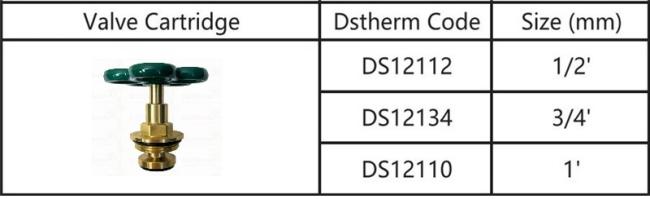

Product Size
Technical standard
-
Material
-
Body/Cartridge: ASTM B584 lead-free brass (electroless nickel-plated, ≥25µm).
-
Seals: EPDM (compatible with water/oils).
-
Handle: UV-stabilized PA66 (Shore A 75±5, RoHS/REACH compliant).
-
-
Dimensions
-
Threads: NPT/BSP (1/2", 3/4", 1").
-
Torque: ≤5 Nm.
-
-
Performance
-
Pressure: 16 bar @20°C, 10 bar @80°C; burst ≥48 bar.
-
Temp Range: -10°C to 120°C.
-
Leakage: ≤0.1 mL/min (ISO 5208 Rate A).
-
-
Testing
-
Hydrostatic: 24 bar for 3 min (no leaks/deformation).
-
Cycles: 10,000 open/close (no seal failure).
-
Certifications: RoHS, ISO 9001.
-
Stop Valve Cartridge
A compact, replaceable valve component designed to control or shut off fluid flow in piping systems. Typically integrates a sealing mechanism (e.g., ball, disc, or poppet) within a standardized housing for easy installation and maintenance. Used in water, HVAC, and industrial applications for precise flow regulation.
Why Choose DSTHERM?
-
Customization
-
Tailored dimensions (e.g., 1/2", 3/4", 1") and thread types (NPT/BSP) to meet specific application needs.
-
-
Superior Quality
-
Premium materials: ASTM B584 lead-free brass, EPDM seals, UV-resistant PA66 handle.
-
Rigorous testing: 24-bar hydrostatic pressure, 10,000-cycle endurance, ISO 5208 leakage compliance.
-
Certifications: RoHS, ISO 9001, ensuring safety and durability.
-
-
In-House Manufacturing
-
Full control over production processes for consistent quality and rapid delivery.
-
Scalable solutions with strict adherence to technical standards.
-
DSTHERM combines flexibility, reliability, and vertical integration to deliver high-performance valve solutions.
Packaging & Delivery
Packaging Details:
(1) Export safe box.
(2) Inner boxes with filler.
(3) Outpackage is high quality cartons.
(4) Custom package.

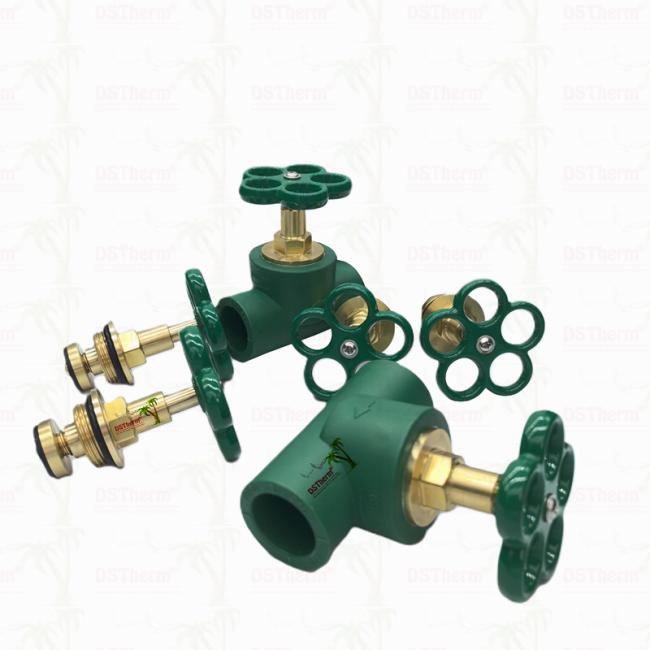

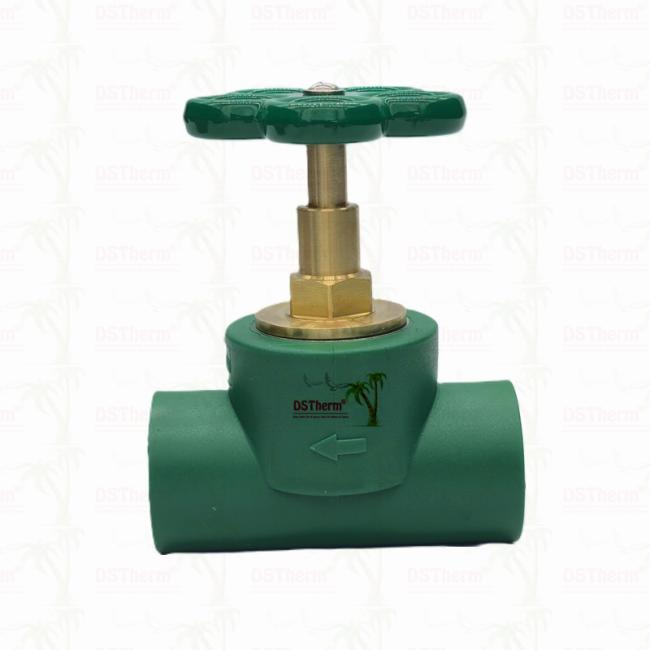

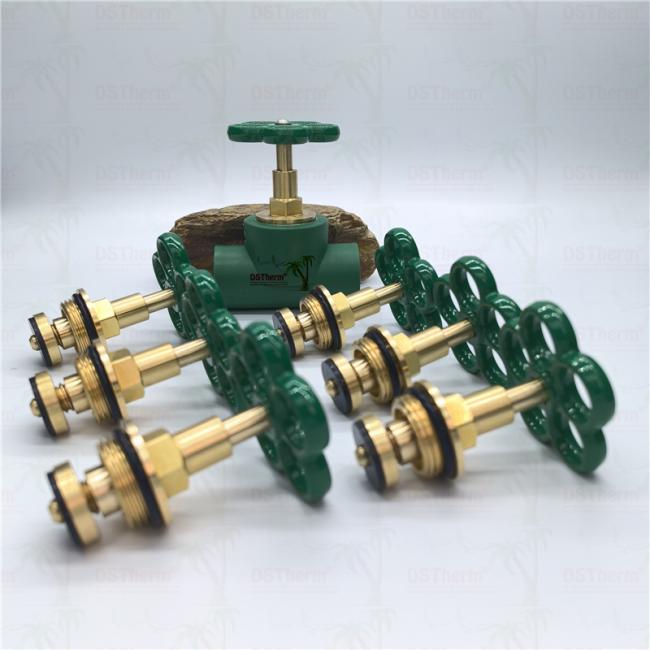

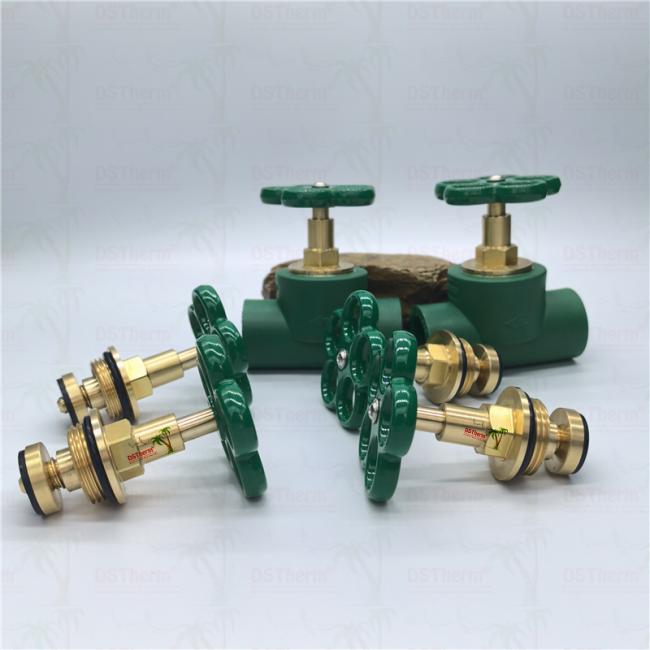

Actual Pictures
What can we do for you?
1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. OEM or ODM is available.
6. Some extra accessories can be supplied.
7.The larger quantity you order,the more competitive prices you'll get.
8. Necessary Certificates can be supplied.
We Will Be Your The Better Choice!
