Digital Automotive Tachometer LED Display 2 Inch 52mm PM Stepper Motor Gauges
Price:
Negotiation
MOQ:
1
Delivery Time:
20
Brand:
SINCO TECH
Product Description
2 Inch 52mm Automoitve Race Car Gauge LED Display PM Motor Gauge
Description :
- Brand:SINCO TECH

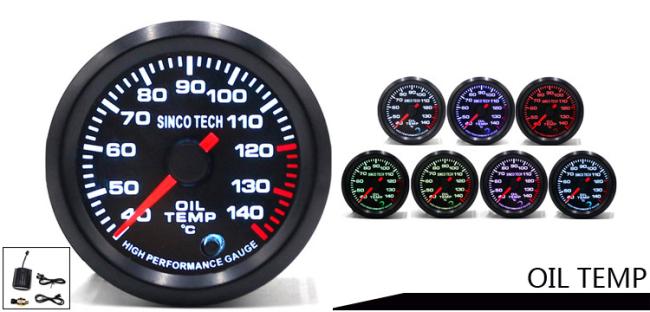

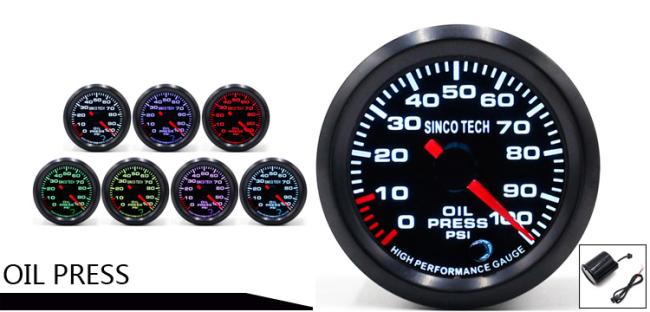

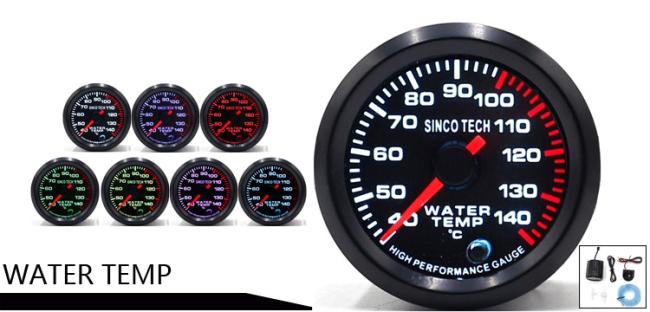

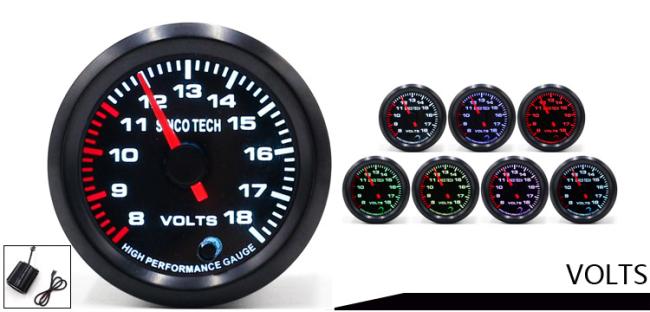

- Gauge Model:RPM,Water Temp,Oil Temp,Oil Press,Boost,Volts,AFR,EXT Temp.
- Material: ALUMINUM
- Backlight: White, Red, Green, Yellow, Purple, Blue, Pale blue (7-color switch)
- Application:12V Vehicle
- Drive Voltage:DC5V
- Drive Current :30mA MAX
- Drive Mode:1/64 MICROSTEP
- Linearity: 0.5° MAX
- Hysteresis :1.2°MAX
- Operating Temp:-40 ℃～105℃(Humidity 20%～80%)
- Storage Temp: -40 ℃～105℃
- Working Angle :340 °
- Zero Position Accuracy: CCW:-1.5°～ 0.5°
- Holding Torque :1.0 mNm MAX
- Pull In Torque:0.6 mNm MAX
- Detent Torque: 0.29 mNm MAX
- Stud Strength: 28.4 mNm MIN
- Winding Resistance : 180x (1± 7%)Ω
- Winding Inductance :100 mH REF
- Insulation Resistance : 10MΩ MIN
- Dielectric Strength : 3 mA MAX
- Class Of Insulation: CLASS B
- Rotor Inertia : 0.1 G* CM2 REF
- Acoustic Noise:22dbA MAX
- Life: 2000 hr MIN
