High Precision Stainless Steel Screen Printing Mesh Ultra Fine Wire Mesh
High precision 304/316/304 N Plain Weave Stainless Steel Wire Mesh Printing Cloth
Stainless steel wire mesh printing cloth is widely used in super precision product,like the Printed Circuit Board,Glass,Creamic,Metal,Rubber,Plastic and so on.it is very suitable for use harsh environments,multicolor overprint,Batch printing ect..
Introduce For The Stainless Steel Wire Mesh Printing Cloth:
Material: SUS 304N,304HP,316.
Mesh count: 40mesh/inch-400mesh/inch
Wire diameter: 18micron-160 micron
Roll width: 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you.
Roll Length: Staindard size 30meters.
Weave style: Plain weave.1:1
Mesh thickness:please see our specification.
Features For Stainless Steel Wire Mesh Printing Cloth:
Low Elongatation;
High tension;
Heat resistant;
High stability;
High flexibility
Non-electrostatic
Abrasion resistant;
Good Solvent resistant;
Chemical & Thremal resistant;
Excellent resistant to abrasion;
Excellent levels of plasticity;
and so on...
Application For Stainless Steel Screen Printing Mesh:
Reking Stainless steel screen printing mesh are mainly used in touch screen printing,the solar battery printing,LCD printing,FPD printing,electronic components printing,thick film printing,creamic printing industy, glass printing industry,ect...
Specification For Stainless Steel Wire Mesh Printing Cloth:
| Mesh/ inch |
Wire diameter (µm) |
opening (%) | Aperture (µm) |
Mesh thickness (µm) |
One time calender (µm) |
Two time calender (µm) |
Suggestion tension (N/CM) |
Ink thickness (cm3/㎡) |
| 40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 |
| 50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 |
| 60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 |
| 80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 |
| 80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 |
| 80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 |
| 100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 |
| 120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 |
| 150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 |
| 165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 |
| 165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 |
| 180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 |
| 180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 |
| 200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 |
| 200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 |
| 230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 |
| 250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 |
| 250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 |
| 250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 |
| 270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 |
| 300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 |
| 325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 |
| 325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 |
| 325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 |
| 350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 |
| 400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 |
| 400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 |

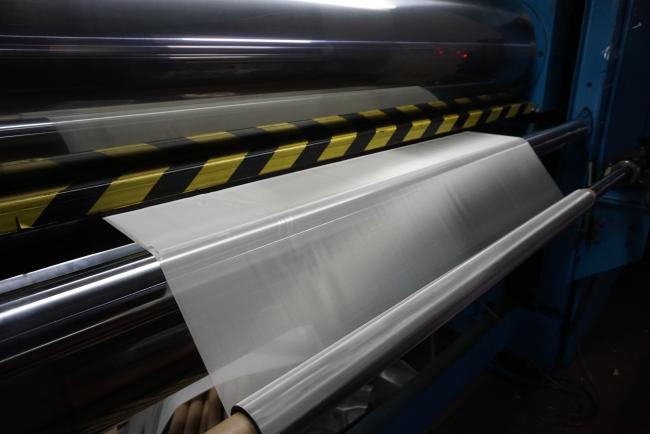

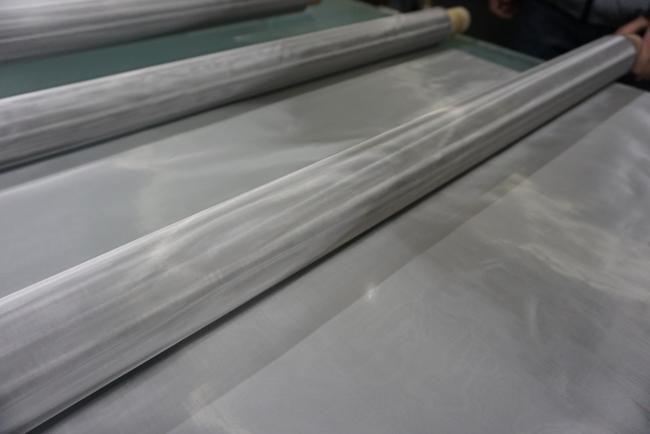

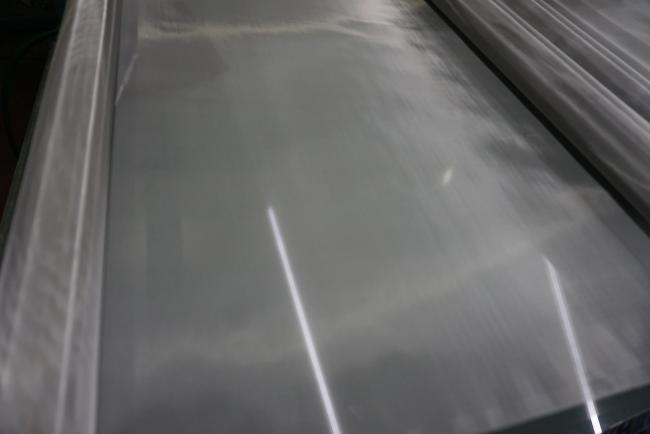

Photos for the Stainless Steel Wire Mesh Printing Cloth:
The warehouse of the stainless steel steel wire mesh printing cloth:
Certification for the Stainless Steel Screen Printing Mesh:
