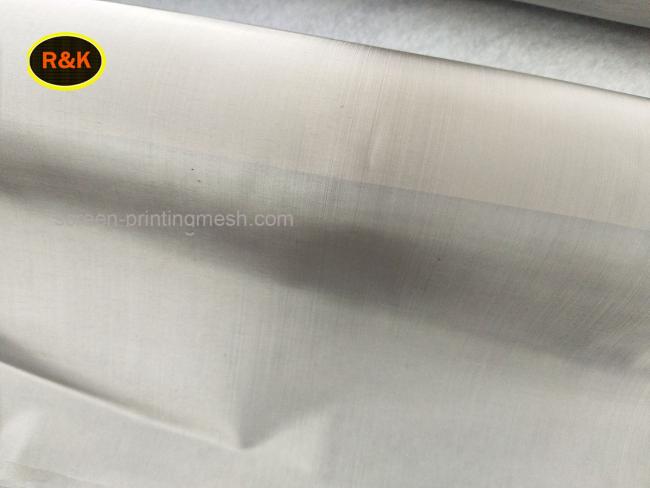

Chemical Industry Stainless Steel Woven Wire Mesh Screen 304HPS / 316L Material
Precision Ultra Finer Chemical Industry Stainless Steel Screen Printing Mesh Plain Weave
Description of the Steel Screen Printing Mesh :
By selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
| Material | 304HPS,316L |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Aperture size | 41-268micron |
| wire diameter | 0.018-0.02mm |
Featuers of the Steel Screen Printing Mesh :
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation: Very small elongation of wire mesh at igh tension.
High-Flexibility: The wire mesh will not lose elasticity at extremely tension.
High-Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia (mm) |
Open area Ratio(%) |
Apereture (mm) |
Thickness(mm)
|
Calendered Thickness (mm)
|
Theoretical lnk(cm^/m^) |
| 40*40*0.16 | 40 | 0.16 | 56.0 | 0.475 | 0.3-0.32 | As order | 179.1 |
| 60*60*0.12 | 60 | 0.12 | 51.3 | 0.303 | 0.23-0.245 | As order | 123.2 |
| 80*80*0.12 | 80 | 0.12 | 39.0 | 0.198 | 0.235-0.245 | As order | 92.9 |
| 80*80*0.09 | 80 | 0.09 | 52.0 | 0.228 | 0.175-0.18 | As order | 103.0 |
| 80*80*0.05 | 80 | 0.05 | 71.0 | 0.268 | 0.095-0.1 | As order | 78.0 |
| 100*100*0.1 | 100 | 0.1 | 36.8 | 0.154 | 0.195-0.205 | As order | 77.2 |
| 120*120*0.08 | 120 | 0.08 | 39.0 | 0.132 | 0.155-0.165 | As order | 65.8 |
| 150*150*0.06 | 150 | 0.06 | 41.7 | 0.109 | 0.115-0.124 | As order | 50.0 |
| 165*165*0.035 | 165 | 0.035 | 60.0 | 0.119 | 0.07-0.075 | As order | 48.0 |
Application of the Steel Screen Printing Mesh :
Solar battery,
Pinted Circuit Board(PCB),
Chip Electrical components,
Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.
