100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color
100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color
Description of the screen printing mesh:
Under tensile enlongation is small,high flexibility,single wire mesh is suitable for precision printing.The tensile strength,structural strength resilience and resistant force are better.Wish sufficient drug resistant ,especially the resistant to acid,organic solvent resistance is strong.like nylon renewable use. Low moisture absorption,amost effected by humidity. High heat resistance than nylon,influenced by ultraviolet(UV) smaller than nylon.
Characteristic of the Screen printing mesh:
1) Minimum tension loss during stretching.
2) Due to the stability of fabric tension, the registration rate is improved.
3) Good anti-static.
4) No surface treatment.
5) High tension threshold and breaking point.
6) High modulus, low elongated single filament polyester yarn.

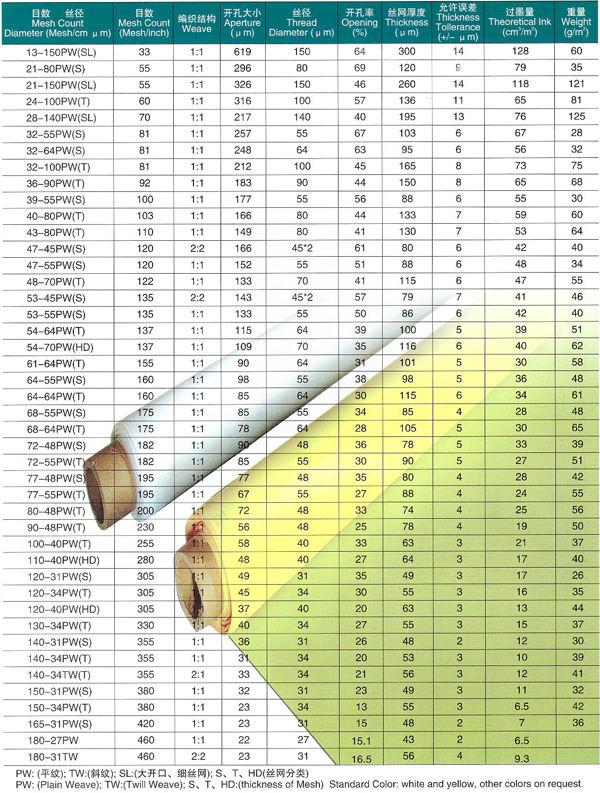

Specification of the screen printing mesh:
|
Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /inch) |
We ave |
Aper ture (μm) |
Opening (%) |
Weight |
Thickness (μm)
|
Thickness Tollerance (+/- μm)
|
Theoretical lnk(g/m^) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 64 | 60 | 300 | 14 | 128 |
| 21-80pw(S) | 55 | 1:1 | 296 | 69 | 35 | 120 | 9 | 79 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 46 | 121 | 260 | 14 | 118 |
| 24-100PW(T) | 60 | 1:1 | 316 | 57 | 81 | 136 | 11 | 65 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 40 | 125 | 195 | 13 | 76 |
| 32-55PW(S) | 81 | 1:1 | 257 | 67 | 28 | 103 | 6 | 67 |
| 32-64PW(S) | 81 | 1:1 | 248 | 63 | 32 | 95 | 6 | 56 |
| 32-100PW(T) | 81 | 1:1 | 212 | 45 | 75 | 165 | 8 | 73 |
| 36-90PW(T) | 92 | 1:1 | 183 | 44 | 68 | 150 | 8 | 65 |
| 39-55PW(S) | 100 | 1:1 | 177 | 56 | 30 | 88 | 6 | 55 |
| 40-80PW(S) | 103 | 1:1 | 166 | 44 | 60 | 133 | 7 | 59 |
Application of the screen printing mesh:
For Textile printing;
For Garment(T-shirt) printing;
For CD/DVD printing;
For Glass printing ;
For Ceramic printing ;
For Electronics components printing;
And so on...
The screen printing mesh is also used well in filteration industry,such as ink filter,aviation,aerospace,petrochemical and other high-tech fields of melt filter etc.

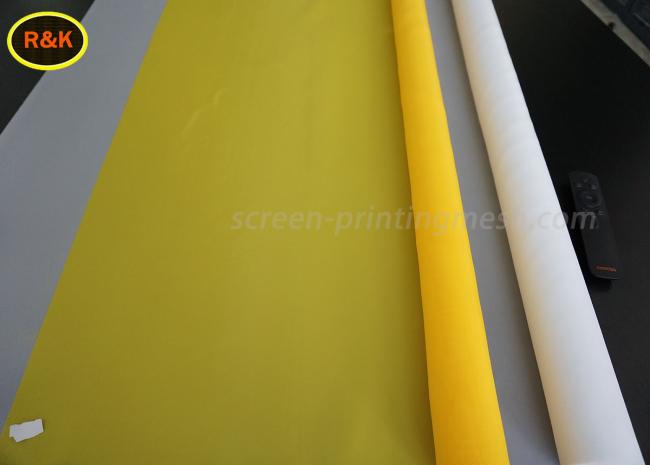

Photo of the screen printing mesh:
