Primary Color Screen Printing Mesh Screen Fabric Mesh For Solar Battery
Primary Color Plain Weave Stainless Steel Screen Printing Used For Solar Battery

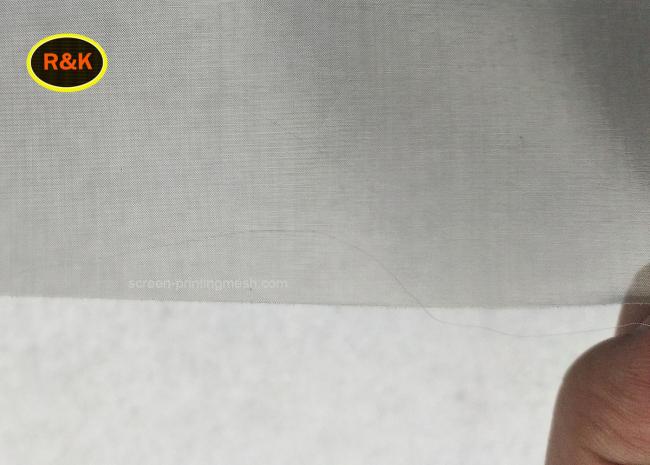

Description of the Steel Screen Printing Mesh :
Stainless steel mesh is a stainless steel mesh used to filter liquid, gas and pulp.Generally speaking, this kind of wire mesh has standard opening size, even opening.Good permeability and high strength.Raw materials should be selected according to different application environments.Woven wire mesh is a kind of Dutch weaving net, which has more lines than the weft, and then forms a more complex grid surface.Reverse Dutch braid is widely used in plastic extruder.
We have certification of Stainless steel seats are made of stainless steel wire by selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
Openings can be square, rectangular or special openings.Generally speaking, this kind of wire mesh has standard opening size, uniform opening, good permeability and high strength.Raw materials should be selected according to different application environment.
| Material | SUS304N,304HPS,316,316L |
| Weave | Plain weave |
| Features | High Flexibility |
| Mesh/inch | 40-500inch |
| wire diameter | 0.018-0.02mm |
Featuers of the Steel Screen Printing Mesh :
- High tension.Much higher than common polyester mesh,and this property is very stable
- Super Precision.Uniform wire diameter and aperture with extremely low difference
- Low Elongation.Very small elongation of wire mesh at high tension
- High Flexbility.The wire mesh will not lose elasticity at extreme tension
- High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
- Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia(μm) | Open area Ratio(%) | Apereture (μm) | Apereture(μm) | Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
Application of the Steel Screen Printing Mesh :
The stainless steel printing screen has many functions, such as making solar cells.pint board (PCB),chip electronic components,flat panel displays,liquid crystal display (LCD),plasma display panel (PDP), etc.
Please feel free to contact us if you wish to know more.
