45 Inch Polyester Screen Printing Mesh Multi Function No Surface Treatment
45 Inch Polyester Screen Printing Mesh Multi Function No Surface Treatment
Description :

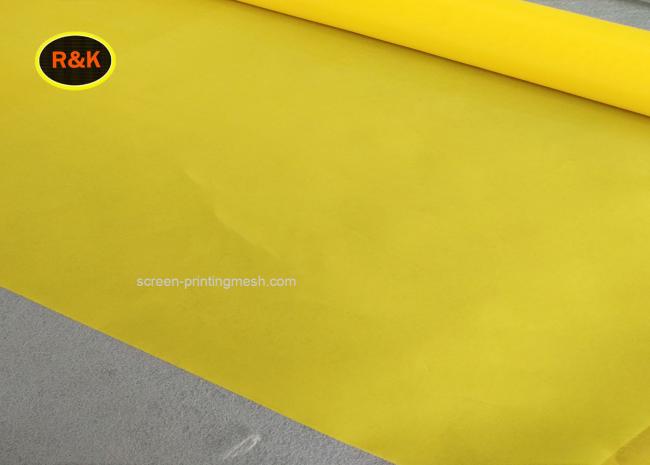

White mesh is one of the more economical of the two, mainly in the lower grid number, for less detailed design.The higher count grid is usually colored yellow because the yellow effect is to eliminate the uv factor, and when you burn on the screen, it prevents refraction on the grid.This will make your screen more focused, more precise, and make your screen sharper.
| Material | Polyester |
| Length | 30m/roll |
| Delivery | Within 3-7days |
| Color | White |
| Mesh count | 30 mesh - 420 mesh |
Featuers
Minimum tension loss during stretching.
Due to the stability of fabric tension, the registration rate is improved.
Good anti-static.
No surface treatment.
High tension threshold and breaking point.
High modulus, low elongated single filament polyester yarn.
Specification
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh/Inch) |
Weave | Aperture(μm) | Thread Diameter (μm) |
Opening (%) | Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight(g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
Application
Polyester screen printing network widely used in textile printing, T-shirt printing, ceramics printing, glass printing, printing and other industries.for Textile;for Garment(T-shirt);for CD/DVD;for Glass;for Ceramic ;for Electronics;
The screen printing mesh is also used well in filteration industry,such as ink filter,aviation,aerospace,petrochemical and other high-tech fields of melt filter etc.
