Introduce of the nylon screen printing mesh:
Nylon screen printing mesh is made of high quality domestic and imported material,advanced weaving loops and test instrument.So this kind of nylon screen printing mesh have high tensity and low enlongation etc..
We are the manufacturer for this polyester mesh with more than 25 years, we use the NANTONG yarn to weave it, we have more than about 100sets machine to make. this mesh is widely used in CD/DVD Printing,ceramic decorative printing,textile printing,glass ,metal and so on.
Application of the nylon screen printing mesh:
Nylon screen printing mesh is widley used in bottle surface printing,plastic surface printing,and other curved surface printing. .like the lady chemical skin care bottle, medicine bottle,juice glass bottle,ball for games(foodball,basketball,and the other volleyball and so on).
Features of the nylon screen printing mesh:
Nylon screen printing mesh have lowest cost than polyester screen printing mesh and the stainless steel printing mesh. White mesh is more economical than other color.The high counter mesh is usually dyeing yellow color,bocz yellow color the main factory to conceling the UV light. then got a excellengt printing effect.
If you are interesting in our mesh,just contact us freely. we are online all the time.
Specification for the nylon screen printing mesh:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | Tension value(N/CM) |
| 165-31PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24 |
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 | 34-35 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 | 34-35 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 | 37-38 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 | 34-35 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 | 33-34 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 | 32-33 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 | 39-40 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 | 33-34 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 | 34-35 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 | 33-34 |

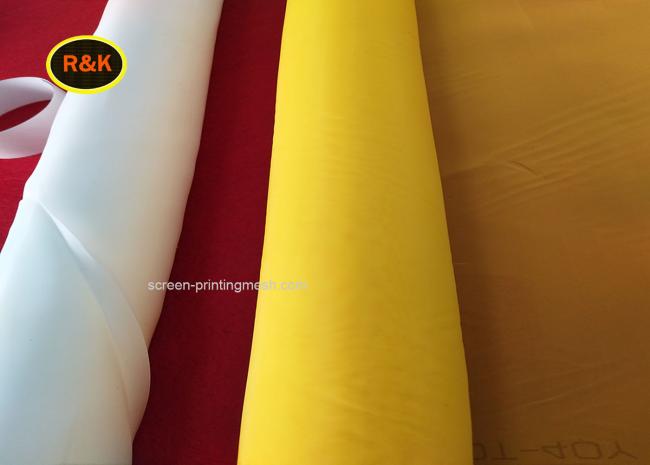

Photo for the nylon screen printing mesh:
