10T-165T Silk Screen Printing Mesh For Graphics Printing / Cosmetic Bottles

Name: 10T-165T Silk Screen Printing Mesh For Graphics Printing / Cosmetic Bottles
Brand: Hebei Reking Wire Mesh CO.,Ltd

Price Negotiable

Price: negotiation

MOQ: 50 Meter/Meters

Delivery Time: Negotiable

Brand: R&K

Product Description

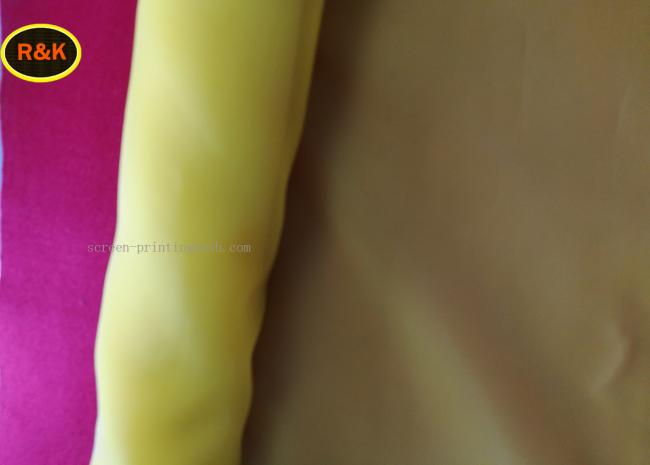

Polyester Silk Screen Printing Mesh for Porcelain/Cloth/Glass/PCB Printing

Description of polyester silk screen printing mesh:

Product Name	polyester silk screen printing mesh
Material	100% Polyester 6T-400 to 77T-55 80T-48 to 165T-31 The material can be customer request
Width	White color mesh max-width 368cm(145"); Yellow color mesh 43T-80 to 120T-34 max-width 330cm(129") , 165T, max-width 275cm(108")
MOQ	50M
Length	20 to 50m, The max can be 1000m
Aperture	31 micron-1300 micron
Thread diameter	31-40 micron
Colour	White( 15-180mesh count/inch) & Yellow (200-420mesh count/inch)
Mesh Count	10T-165T(25-420 Mesh)
Used	T-shirt printing, Garment printing, Graphics printing, Ceramics, Glass, Cosmetic Bottles, Printed circuit boards and so on...

Characteristics of polyester silk screen printing mesh:

Faster tensioning without damage to the threads; improved fabric strength; faster tension stabilization; higher tension threshold and breaking point; faster turnaround time from the screen room to the pressroom; improved registration due to stable tension; faster Print speeds.

Specification

Polyester Silk Screen Printing Mesh Specifications
Model	Mesh/cm	Mesh/inch	Aperture	Thread Dia.	Open Area	Thickness	Theoretical Ink
Model	Mesh/cm	Mesh/inch	(micron)	(micron)	(%)	(micron)	(cm3/m2)
10-250	10	25	743	250	55	495	274
12-140	12	30	686	140	68	277	189
13-150	13	33	619	150	64	300	128
16-140	16	40	461	140	58	238	139
21-80	21	55	296	80	69	120	79
21-150	21	55	326	150	46	260	118
22-80	22	56	356	80	66	136	90
24-80	24	60	320	80	63	136	86
24-100	24	60	316	100	57	170	65
28-140	28	70	217	140	40	195	76
32-55	32	80	257	55	67	103	67
32-64	32	80	248	64	63	95	56
32-100	32	80	212	100	46	170	73
36-90	36	92	183	90	44	150	65
39-55	39	100	177	55	56	88	55
43-80	43	110	149	80	41	130	53
47-55	47	120	152	55	51	88	48
48-70	48	122	133	70	41	115	47
53-55	53	135	133	55	50	86	42
54-64	54	137	115	64	39	100	39
54-70	54	137	109	70	35	116	40
61-64	61	155	90	64	31	101	30
64-55	64	160	98	55	38	98	36
64-64	64	160	85	64	30	115	34
68-55	68	175	85	55	34	85	28
68-64	68	175	78	64	28	105	30
72-48	72	182	90	48	36	78	33
72-55	72	182	85	55	30	90	27
80-48	80	200	72	48	33	74	25
90-48	90	230	56	48	25	78	19
100-40	100	255	58	40	33	63	21
110-40	110	280	48	40	27	64	17
120-31	120	305	49	31	35	49	17
120-34	120	305	45	34	30	55	16
130-34	130	330	40	34	27	55	15
140-31	140	355	36	31	26	48	12
140-34	140	355	31	34	20	53	10
150-31	150	380	32	31	23	49	11
150-34	150	380	23	34	13	55	6.5
165-31	165	420	23	31	15	48	7
Note:The above theoretic data is for reference only,and thickness tollerance

Applications of polyster silk screen printing mesh:

For T-shirt printing

For Garment printing

For Graphics printing

For Ceramics

For Glass

For Cosmetic Bottles

For Printed circuit boards and so on...
