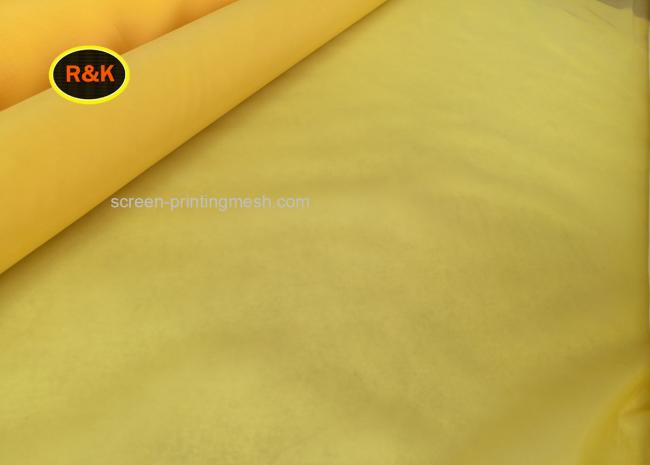

140T Plain Weave Monofilament Screen Printing Mesh White Yellow Color
140T Plain Weave White Yellow Color Square Hole Monofilament Screen Printing Mesh
Description For The Monofilament Printing Mesh:
Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.
| Specification | Application |
| 21T,24T | Beach towel,Pennant inks,Glitter inks,Thicker inks |
| 32T,34T,36T,39T,43T | Textile inks,Opaque inks textile,T-shirts |
| 48T,49T,54T,55T | Textile inks,Finer textile design,Water based inks. |
| 62T,64,68T,72T | Enamal inks,Very fine textile ink or course plastisol ink printing |
| 77T | Paper and Board inks and textile |
| 90T,100T | Vinyl inks,Plastic inks,Plastisol inks,Solvent based |
| 110T,120T,140T | Halftone printing,Paper and Board Vinyl Plastic,Plastisol,an so on. |
| 150T,165T | U.V.printing,or very fine halftone work,solvent inks |
Silk screen printing mesh are widely used in ceramic,glass,electonic components,textile,Garment,CD/DVD Pinting industry,like the life metal advertisement,business card,and the imgae..
Specification For The Monofilament Printing Mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
Characteristic For The Monofilament Printing Mesh:
Good diathermancy;
Acid resistant alkali resistant;
Long work life printing material;
Hard wear printing material;
Faster turnaround time from the screen room to the pressroom;
High air permeability printing material;
Three warehouse for manufacturing
Imported weaing machine from Switzerland and Itday,Germany.
Application For The Monofilament Printing Mesh:
Printing mesh are widely used in T-shirt printing, Graphics printing, Cosmetic Bottles,Ceramics, Glass,Garment printing, electronic components
PCB,CD/DVD,Solar battery ect.
