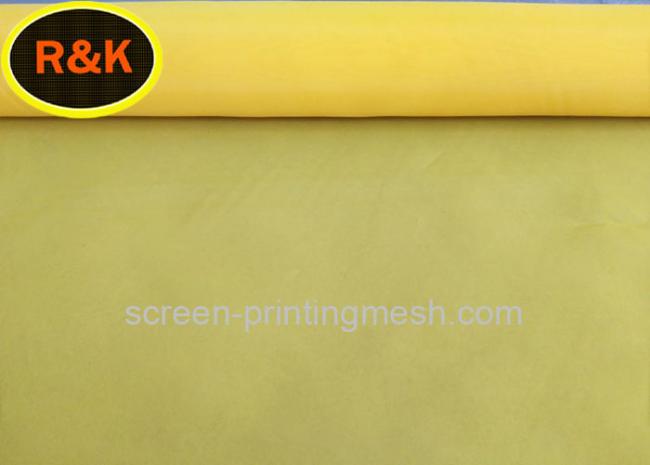

Yellow White Mesh Screen Material Monofilament Mesh Fabric 115cm Width
115cm Width Yellow White Color High Elasticity Monofilament Printing Screen
Description of the Monofilament Screen Printing Mesh:
Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.
polyester monofilament printing mesh with high-precision high-quality monofilament polyester mesh, with high precision, stable tension and other characteristics, and excellent dimensional stability, making printing will not produce deviation, and to ensure ultra-high strength and low elongation Degree, can greatly extend the life of the screen, another with heat, high temperature, wear-resistant and so on.
Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.
| USAGE | MESH COUNT | USAGE | MESH COUNT |
| Garment printing | |||
| Glitter | 25-60 | Flock adhesive | 45-125 |
| Pigment ink printing, areasnes | 110-175 | Puff-up colors | 55-125 |
| Overpritnig | 80-110 | Plasticol transfer | 125-305 |
| Universal fabric | 125 | Plasticol direct | 125-305 |
| Pigment inks,half-tone | 155-255 | Sublimation transfer | 195-305 |
Specification of the Monofilament Screen Printing Mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
Characteristic of the Monofilament Screen Printing Mesh:
1/High tension and low-Elongation;
2/Less tension loss after high strength;
3/Standard size and filtration value;
4/(+-)2-6micorn thickness tollerance;
5/Faster printing speed and finer printing effect
Application of the Monofilament Screen Printing Mesh:
Packing printing,
Graphic sceen printing,
CD/DVD printing,
Printing plate,
Printing electronics,
PCB printing,
Solar battery printing,
Ceramic printing,
T-shirt printing,
Garment printing,
Gass printing.
