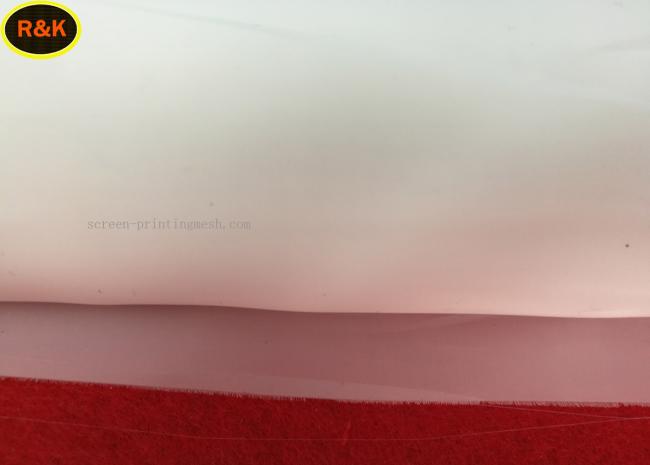

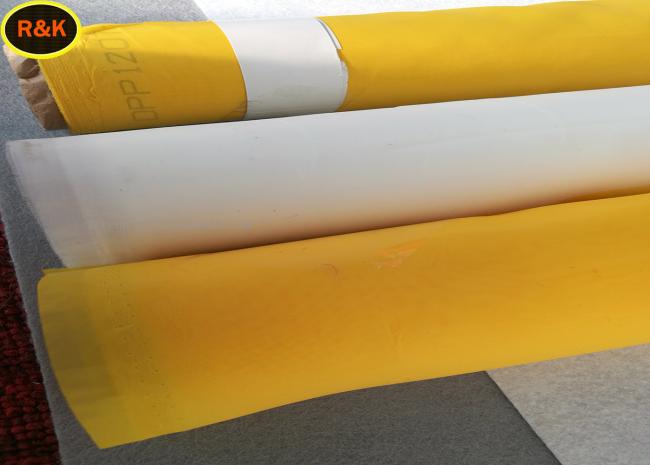

100% Polyester Silk Screen Mesh Roll , 25 Micron Screen Roll Low Elasticity
Price:
negotiation
MOQ:
50 Meters
Delivery Time:
within 5 days
Brand:
R&K
Product Description
Polyester Screen Mesh Roll Printing on Glass Plate DPP120 /300-314
Description of polyester screen mesh roll printing on glass plate:
| Model Number | DPP77/195-55 |
| Mesh Count |
30-460M/inch
|
| Product Name | Polyester Screen Mesh Roll Printing on Glass Plate DPP120 /300-314 |
| Main customers | BYD,SEFAR,FUYAO,FOXCONN |
Features & advantages of polyester screen mesh roll printing on glass plate
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
Applications of polyester screen mesh roll printing on glass plate:
DPP Silk Screen Printing Material-Polyester Printing Mesh is woven from yarn that is extruded from heated polyester into a single strand. Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.
Common Specifications:
silk screen printing
43T-80,39T-55, 47T-55, 53T-55, 59T-55 90T-48,70T-55,64T-64,90T48,110T-40,120T-34,140T-34,165T-31 and so on.
Real Quality, Reasonable Price, Expert Service.
| Polyester Printing Mesh | |||||||
| Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter (um) | Mesh opening(um) | Open Area(%) | Thickness(um) | Theoretic Ink Volume (cm3/m2) |
| PET36/169 | 36 | 90 | 100 | 169 | 39 | 170 | 66 |
| PET39/168 | 39 | 99 | 80 | 168 | 45 | 136 | 62 |
| PET39/149 | 39 | 99 | 100 | 149 | 35 | 170 | 60 |
| PET43/145 | 43 | 110 | 80 | 145 | 41 | 136 | 56 |
| PET47/135 | 47 | 120 | 71 | 135 | 42 | 121 | 51 |
| PET51/119 | 51 | 130 | 71 | 119 | 39 | 121 | 47 |
| PET53/112 | 53 | 135 | 71 | 112 | 37 | 121 | 45 |
| PET100/51 | 100 | 250 | 40 | 51 | 30 | 85 | 26 |
| PET110/48 | 110 | 280 | 34 | 48 | 33 | 58 | 19 |
| PET110/43 | 110 | 280 | 40 | 43 | 26 | 68 | 18 |
| PET120/44 | 120 | 305 | 31 | 44 | 33 | 53 | 18 |
| PET120/42 | 120 | 300 | 34 | 42 | 29 | 58 | 17 |
| PET120/37 | 120 | 300 | 40 | 37 | 18 | 68 | 13 |
| PET130/31 | 130 | 330 | 40 | 31 | 17 | 68 | 12 |
| PET130/36 | 130 | 330 | 34 | 36 | 26 | 58 | 15 |
| PET140/34 | 140 | 350 | 31 | 34 | 25 | 53 | 13 |
| PET140/32 | 140 | 350 | 34 | 32 | 19 | 58 | 11 |
| PET150/34 | 150 | 380 | 27 | 34 | 30 | 46 | 14 |
| PET150/31 | 150 | 380 | 30 | 31 | 23 | 51 | 12 |
| PET150/28 | 150 | 380 | 34 | 28 | 16 | 58 | 9 |
| PET165/29 | 165 | 420 | 27 | 29 | 22 | 46 | 10 |
| PET165/25 | 165 | 420 | 31 | 25 | 16 | 53 | 8 |
| Remark:The above are theoretic data for reference only.Thickness error range±5% ;Mesh Opening & Open Area & Theoretic Ink Volume only slight error according to actual data. | |||||||
More Specifications kindly please contact us.(8T~165T)
