Acid Resistant Monofilament Screen Printing Mesh For Glass / Ceramic

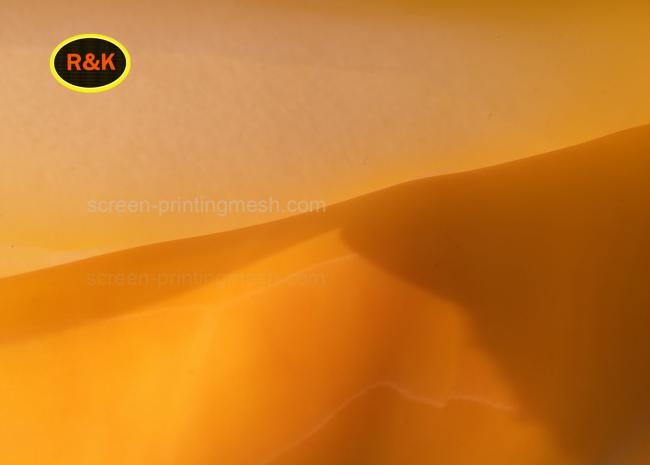

High Elasticity Plain Weave T-shirt Yellow Color Silk Monofilament Screen Printing Mesh
Description For The Silk Screen Printing Mesh:
Polyester printing mesh commonly used in ceramic printing,glass printing,electronic components ,graphic printing,metal printing,chemical printing,platic printing. and so on,it can save many cost to product what you want.
Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.
Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.
| Specification | Application |
| 21T,24T | Beach towel,Pennant inks,Glitter inks,Thicker inks |
| 32T,34T,36T,39T,43T | Textile inks,Opaque inks textile,T-shirts |
| 48T,49T,54T,55T | Textile inks,Finer textile design,Water based inks. |
| 62T,64,68T,72T | Enamal inks,Very fine textile ink or course plastisol ink printing |
| 77T | Paper and Board inks and textile |
| 90T,100T | Vinyl inks,Plastic inks,Plastisol inks,Solvent based |
| 150T,165T | U.V.printing,or very fine halftone work,solvent inks |
Specification For The Monofilament Printing Mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 140-34TW(T) | 355 | 1:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
| 165-34PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
Characteristic For The Monofilament Printing Mesh:
Good diathermancy;
Acid resistant alkali resistant;
Long work life printing material;
Hard wear printing material;
Faster turnaround time from the screen room to the pressroom;
High air permeability printing material;
Three warehouse for manufacturing
Imported weaing machine from Switzerland and Itday,Germany.
Application For the silk screen printing mesh:
Packing printing,
Graphic sceen printing,
CD/DVD printing,
Printing plate,
Printing electronics,
PCB printing,
Solar battery printing,
Ceramic printing,
T-shirt printing,
Garment printing,
Gass printing.
