Multi Colors Squeegee Blade Material , Silk Screen Printing Squeegee
Silk Screen Printing Squeegee Rubber Roll White Color 70 Shore A 50 * 9 MM Thickness
Screen Printing Squeegee Rubber Roll Specification:
squeegee standard profile:
E1 : Straight square edge
E2: Single Bevel + flat tip
E3: Single Bevel
E4: Double Bevel + Flat tip
E5: Double Bevel (V shape)
E6: Bull Nose (Round top)
E7: H shape
E8: Triple Layer
E9 Double layer
| Material | Polyurethane rubber |
| Color | Red , Brown , Green , Blue , White , Dream Purple |
| Hardeness | From 50 - 95 shore A |
| Thickness | Popular thickness 9 mm |
| Width | 25 mm /50 mm |
| Length | 4 m per meter |
| Packing | 4 m for one small box with film stretch film |
| Product name | Screen printing squeegee rubber roll |
| Certification | ISO,SGS |
Screen Printing squeegee specificaion for reference:
Red color: soft hardness , 60-65 shore A,Suitable for the low mesh screen cloth , low viscosity ink , irregular surface of the printing.
Green color: medium hardness , 70-75 Shore A,Suitable for various of mesh screen cloth,various of ink and various of the prints.
Blue color: Hard hardness,80-85 Shore A, Suitable for various of mesh screen cloth,various of ink and various of the prints.
White color: Super hard hardness, 90-95 Shore A,Suitable for various of mesh screen cloth,various of ink and various of the prints.
Green/white/Green color: Triple medium hardness, 75/90/75 shore A, Suitable for carious of mesh screen cloth,various of ink and various of the prints.
Red/White/Red color: Soft medium, 65/90/65 shore A,suitable for the low mesh screen cloth,low viscosity ink,irregular surface of the printing.
| Color | Hardness | Shore A | Suggestion |
| Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Blue | Hard | 80-85 | Suitable for high pressure,high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | |
| Green/White/Green | Triple medium | 75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium | 65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
squeegee blade specification for reference:
Popular standard size:
| Item name | Thickness*Width*Length | Color | Sharp | Hardness |
|
squeegee
Blade
|
5*17*4000 | Red | Flat | 60A to 90A |
| 5*20*4000 | Red | Flat | 60A to 90A | |
| 5*25*4000 | Red | Flat | 60A to 90A | |
| 5*25*4000 | Red | Flat | 60A to 90A | |
| 5*35*4000 | Yellow | Flat | 60A to 90A | |
| 7*35*4000 | Yellow | Flat | 60A to 90A | |
| 7*42*4000 | Blue | Flat | 60A to 90A | |
| 7*50*4000 | Blue | Flat | 60A to 90A | |
| 9*42*4000 | Green | Flat | 60A to 90A | |
| 9*50*4000 | Green | Flat | 60A to 90A | |
| 10*50*4000 | Coffee | Flat | 40A to 90A |

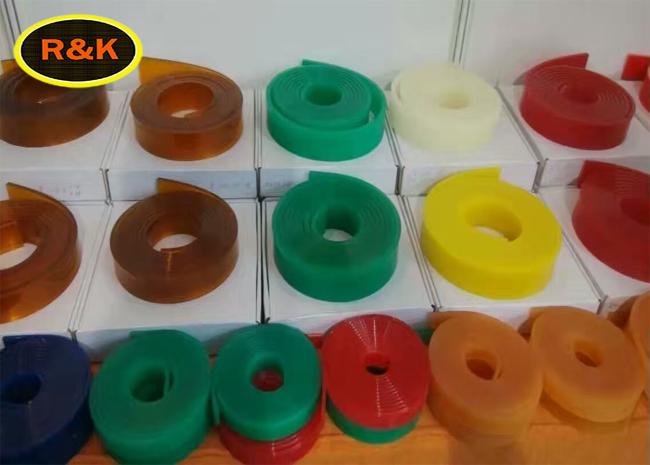

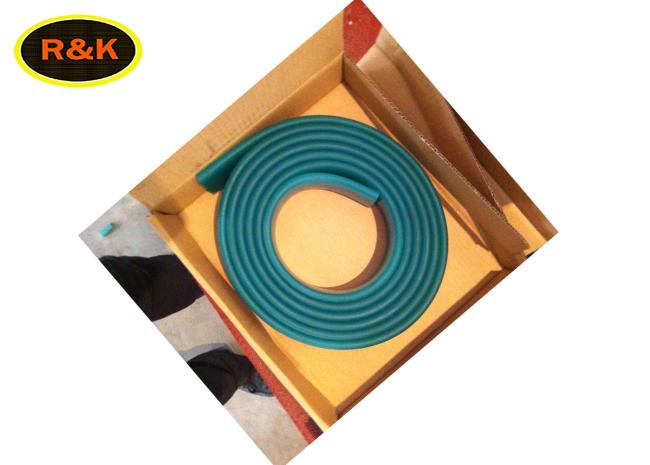

Photo for the screen printing squeegee:
