Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD
Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD

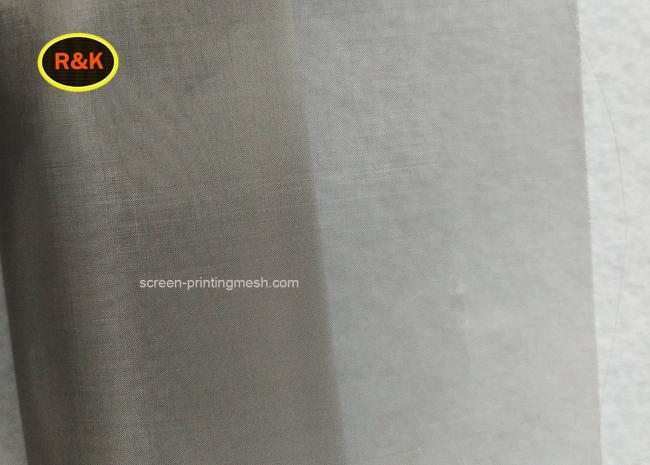

Description of the Steel Screen Printing Mesh
Stainless steel mesh Through the use of carefully selected special alloy materials, and the use of advanced textile technology to make the stainless steel printing network structure is very compact, at the same time to ensure the thickness tolerance of high pressure within the limits of tolerance, an extension of the net, accuracy, therefore more suitable for high density print
| Material | SUS 304N |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Aperture size | 41-268micron |
| wire diameter | 0.018-0.02mm |
| Features | Good solvent resistance |
Featuers of the Steel Screen Printing Mesh :
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation:Very small elongation of wire mesh at igh tension.
High-Flexibility:The wire mesh will not lose elasticity at extremely tension.
Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Heat-melting Resistant :Special features of steel wire mesh.Suitable for heat-melting ink.
High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia(μm) | Open area Ratio(%) | Apereture (μm) | Apereture(μm) | Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
Application of the Steel Screen Printing Mesh :
Solar battery,
Pinted Circuit Board(PCB),
Chip Electrical components,Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.
