Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance
Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance

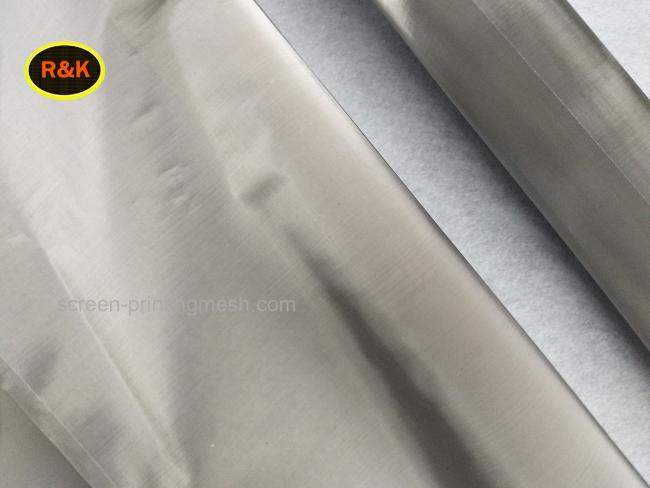

Description of the Steel Screen Printing Mesh
By selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
Stainless steel braided mesh refers to ultra-fine wire mesh, also known as stainless steel wire cloth, which is usually used in micron-sized filtration industry, such as air filtration, liquid filtration, small solid filtration, etc.
| Material | 316L,SUS 304N,304HPS |
| Weave | Plain weave |
| Color | Primary color |
| Size | Usually 1.02meter*30meter Per Roll |
| wire diameter | 0.018-0.02mm |
| Features | Good solvent resistance |
Featuers of the Steel Screen Printing Mesh :
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation:Very small elongation of wire mesh at igh tension.
High-Flexibility:The wire mesh will not lose elasticity at extremely tension.
Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Heat-melting Resistant :Special features of steel wire mesh.Suitable for heat-melting ink.
Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of the Steel Screen Printing Mesh :
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) | |||
| Inch | MM | Inch | MM | ||||
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
Application of the Steel Screen Printing Mesh :
Solar battery,
Pinted Circuit Board(PCB),
Chip Electrical components,
Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.
By selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
