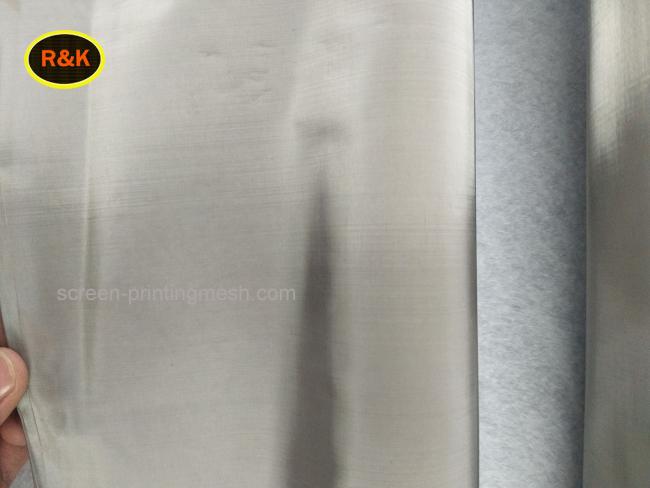

Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave

Name: Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Brand: Hebei Reking Wire Mesh CO.,Ltd

Price Negotiable

Price: negotiation

MOQ: 1 square meter

Delivery Time: in 5 days for goods in stock

Brand: R&K

Product Description

Good Sharpness SUS 304N Stainless Steel Screen Printing Good Heat-Melting Resistance

Description of the Steel Screen Printing Mesh :

Material	SUS304N
Weave	Plain weave
Features	Good Heat-Melting Resistance
Sample	Free.The freight should be paid by buyer
Width	1m,1.22m

R&K supplies high quality surface smooth, bright, high hardness, high temperature resistance, deformation characteristics.We use imported precision cutting machine, can be divided into fine mesh, plain, twill weave.

Featuers of the Steel Screen Printing Mesh :

High-Flexibility

High Tension

Low Elongation

High-Corrosion Resistance

Non-electrostatic

Good Solvent Resistance

Plain Weave

SUS 304N

Good Solvent Resistance

Specification of the Steel Screen Printing Mesh :

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight (kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight (kg/Square meter)
1*1	0.08	2.03	0.92	23.37	92	2
2*2	0.063	1.6	0.437	11.1	87.4	2.5
3*3	0.054	1.37	0.279	7.09	83.8	2.7
4*4	0.047	1.19	0.203	5.16	81.2	2.7
5*5	0.041	1.04	0.159	4.04	79.5	2.6
10*10	0.025	0.64	0.075	1.91	74.9	2
12*12	0.02	0.508	0.063	1.6	75.9	1.5
14*14	0.02	0.508	0.051	1.3	71.9	1.8
16*16	0.018	0.457	0.445	1.13	71.2	1.6
18*18	0.017	0.432	0.386	0.98	69.4	1.6
20*20	0.02	0.24	0.03	0.76	76	0.56
20*20	0.016	0.33	0.034	0.86	72.2	1.1
30*30	0.12	0.305	0.213	0.54	63.9	1.4
30*30	0.0094	0.24	0.243	0.62	72.1	0.84
40*40	0.01	0.254	0.015	0.38	59.9	1.3
50*50	0.0055	0.14	0.0145	0.368	72.4	0.48
60*60	0.0047	0.12	0.012	0.303	71.6	0.42
60*60	0.0059	0.15	0.0107	0.273	64.5	0.65
80*80	0.0055	0.14	0.0069	0.117	45.5	0.76
100*100	0.0045	0.114	0.0055	0.14	55.1	0.59
100*100	0.004	0.102	0.006	0.152	59.8	0.49
120*120	0.0028	0.07	0.0057	0.147	67.7	0.29
150*150	0.0024	0.06	0.0043	0.11	64.7	0.26
150*150	0.0028	0.07	0.0039	0.1	58.8	0.38
165*165	0.0019	0.05	0.0041	0.104	67.5	0.2
180*180	0.0019	0.05	0.0035	0.091	64.5	0.22
180*180	0.0024	0.06	0.0031	0.081	57.4	0.32
200*200	0.0019	0.05	0.003	0.077	60.6	0.24
200*200	0.0024	0.06	0.0026	0.067	52.7	0.35
250*250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270*270	0.0016	0.04	0.0021	0.054	57.4	0.21
300*300	0.0016	0.04	0.0018	0.045	53.5	0.23

Application of the Steel Screen Printing Mesh :

Chemical filtering
.Food and beverage for food filtering
Mining,main use coarse mesh,such as crimped wire mesh
Chip Electrical components,
Plasma Display Panel(PDP) ECT.
Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
Refining,mail use stainless steel fine mes
Healthcare
Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
Acoustic,headphone net
Automotive
Security,PVC coated stainless steel mesh 11mesh.
Pharmaceutical: food grade stainless steel fine mesh
Quarry,advise carbon steel mesh
Electrical Cigarette:super thin stainless steel metal mesh fabric
