Silver Ink 304HPS Resistant Stainless Steel Screen Printing Mesh High Flexibility
Price:
negotiation
MOQ:
1 square meter
Delivery Time:
in 5 days for goods in stock
Brand:
R&K
Product Description

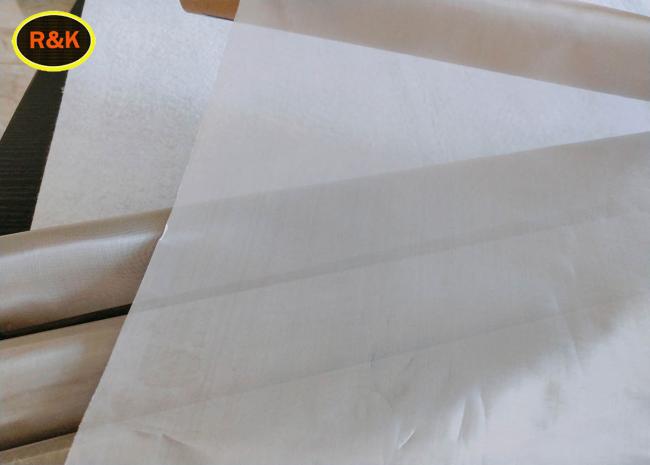

Silver Ink 304HPS Resistant Stainless Steel Screen Printing Mesh High Flexibility
Description of the Steel Screen Printing Mesh :
Ninety percent of the stainless steel mesh can be rolled over.The rolling process flattens the knuckle of the wire, reduces the overall thickness of the mesh, and greatly improves the thickness tolerance.
| Material | SUS304N,304HPS,316,316L |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Aperture size | 41-268micron |
| wire diameter | 0.018-0.02mm |
Featuers of the Steel Screen Printing Mesh :
Super precision.
Low enlongation.
High flexibility.
High corrosion resistant.
Non-electrostatic.
Good heat-melting resistant
Good solven resistant.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
Application of the Steel Screen Printing Mesh :
- Chemical filtering
- .Food and beverage for food filtering
- Mining,main use coarse mesh,such as crimped wire mesh
- Chip Electrical components,
- Plasma Display Panel(PDP) ECT.
- Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
