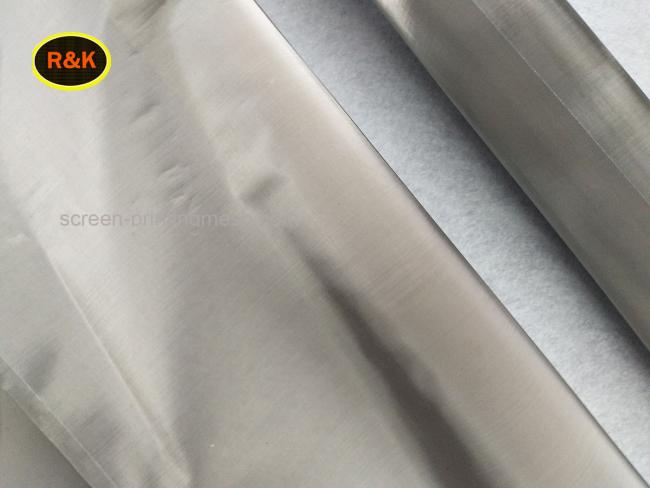

Non Electrostatic Ultra Fine Stainless Steel Mesh Screen For Glitter Print
Non Electrostatic Ultra Fine Stainless Steel Mesh Screen For Glitter Print
Description of the Steel Screen Printing Mesh :
Hebei Reking Wire Mesh Co.,Ltd is prfessionally engaged in production and sales of stainless steel wire mesh,stainless steel screen printing mesh.R&K has now 30 employees including 10 engineers and technicians.Own 56sets GRS1300 model metal wire mesh machine imported from Japan and devices including automatic warp arranging machine imported from Germany,and other test facilities.
Silver Ink Precision Ultra Finer Stainless Steel Screen Printing Mesh ln Industry by selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
| Material | SUS304N,304HPS,316,316L |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Aperture size | 41-268micron |
| wire diameter | 0.018-0.02mm |
Featuers of the Steel Screen Printing Mesh :
High-Flexibility:The wire mesh will not lose elasticity at extremely tension.
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation:Very small elongation of wire mesh at igh tension.
High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia (mm) |
Open area Ratio(%) |
Apereture (mm) |
Thickness(mm)
|
Calendered Thickness (mm)
|
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 0.16 | 56.0 | 0.475 | 0.3-0.32 | As order | 179.1 |
| 60*60*120 | 60 | 0.12 | 51.3 | 0.303 | 0.23-0.245 | As order | 123.2 |
| 80*80*120 | 80 | 0.12 | 39.0 | 0.198 | 0.235-0.245 | As order | 92.9 |
| 80*80*90 | 80 | 0.09 | 52.0 | 0.228 | 0.175-0.18 | As order | 103.0 |
| 80*80*50 | 80 | 0.05 | 71.0 | 0.268 | 0.095-0.1 | As order | 78.0 |
| 100*100*100 | 100 | 0.1 | 36.8 | 0.154 | 0.195-0.205 | As order | 77.2 |
| 120*120*80 | 120 | 0.08 | 39.0 | 0.132 | 0.155-0.165 | As order | 65.8 |
| 150*150*60 | 150 | 0.06 | 41.7 | 0.109 | 0.115-0.124 | As order | 50.0 |
| 165*165*35 | 165 | 0.035 | 60.0 | 0.119 | 0.07-0.075 | As order | 48.0 |
| 200*200*50 | 200 | 0.05 | 37 | 0.077 | 0.98-0.103 | As order | 42.0 |
Application of the Steel Screen Printing Mesh :
The mesh count of stainless steel screen printing refers to the amount of the mesh opening in a length of 1 inch. With the incerase of this number,the wire mesh becomes finer.It is very important to choose the suitable mesh for different printing quality,This should be determined by the products to be printed,the ink type.ect..
