Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance
Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance

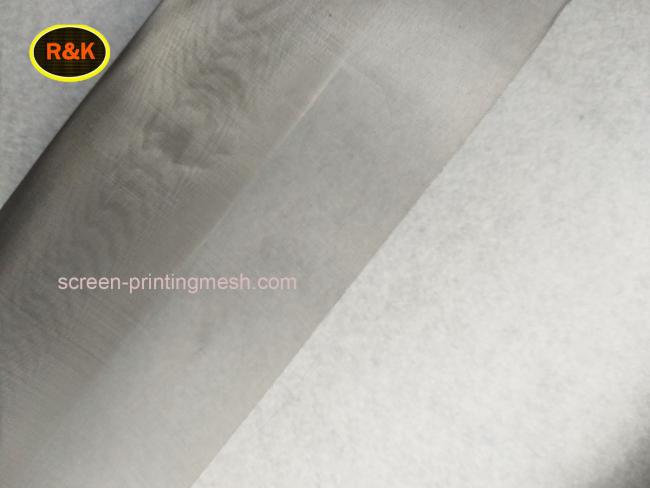

Description of the Steel Screen Printing Mesh :
Our key products are plain weave precise stainless steel printing mesh in 304N and 316L,plain weave and twilled weave stainless steel filter wire mesh in 304,304L,316,316L.The density is from 60mesh to 500mesh per inch and our annual output is 300,000aquare meters.
Characteristics Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .
| Material | 304HPS,316L |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Aperture size | 41-268micron |
| wire diameter | 0.018-0.02mm |
| Features | Good solvent resistance |
Featuers of the Steel Screen Printing Mesh :
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation: Very small elongation of wire mesh at igh tension.
High-Flexibility: The wire mesh will not lose elasticity at extremely tension.
High-Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Good Heat-melting Resistant : Special features of steel wire mesh.Suitable for heat-melting ink.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia (mm) |
Open area Ratio(%) |
Apereture (mm) |
Thickness(mm)
|
Calendered Thickness (mm)
|
Theoretical lnk(cm^/m^) |
| 40*40*0.16 | 40 | 0.16 | 56.0 | 0.475 | 0.3-0.32 | As order | 179.1 |
| 60*60*0.12 | 60 | 0.12 | 51.3 | 0.303 | 0.23-0.245 | As order | 123.2 |
| 80*80*0.12 | 80 | 0.12 | 39.0 | 0.198 | 0.235-0.245 | As order | 92.9 |
| 80*80*0.09 | 80 | 0.09 | 52.0 | 0.228 | 0.175-0.18 | As order | 103.0 |
| 80*80*0.05 | 80 | 0.05 | 71.0 | 0.268 | 0.095-0.1 | As order | 78.0 |
| 100*100*0.1 | 100 | 0.1 | 36.8 | 0.154 | 0.195-0.205 | As order | 77.2 |
| 120*120*0.08 | 120 | 0.08 | 39.0 | 0.132 | 0.155-0.165 | As order | 65.8 |
| 150*150*0.06 | 150 | 0.06 | 41.7 | 0.109 | 0.115-0.124 | As order | 50.0 |
| 165*165*0.035 | 165 | 0.035 | 60.0 | 0.119 | 0.07-0.075 | As order | 48.0 |
Application of the Steel Screen Printing Mesh :
• Solder mask
• Nomenclature
• Thick film technology
• Key pads
• Scales/Dash boards
• Liquid crystal displays
• Ceramics including wall tiles
