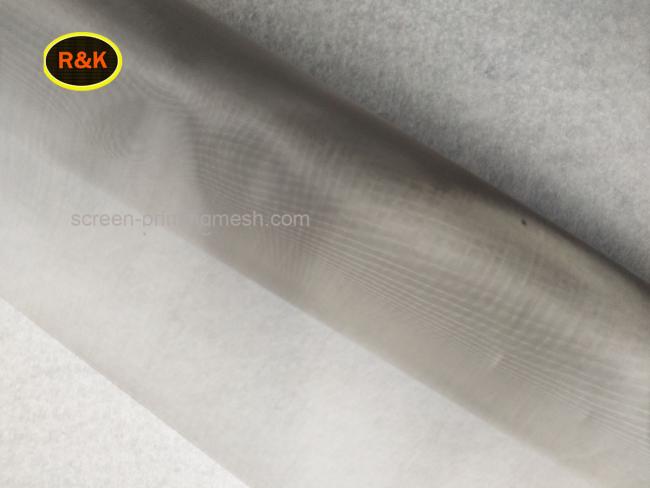

40 Mesh 304 Multi Function Stainless Steel Screen Printing Mesh Roll High Flexibility
40 Mesh 304 Multi Function Stainless Steel Screen Printing Mesh Roll High Flexibility
Description of Stainless Steel Screen Printing Mesh:
Use: stainless steel wire mesh, stainless steel wire cloth products are widely used in petroleum, chemical industry, environmental protection, mine, airspace, paper-making, electronic, metallurgy, etc. We can customize according to customer requirements you want.
| Material | Imported(304N),Domestic(SUS304,SUS316,SUS304L,SUS316L) |
| Weave | Plain weave |
| Size | Usually 1.02meter*30meter Per Roll |
| Aperture | 0.033-0.475mm |
| Length | 30m/roll |
| Width | 1m,1.22m |
Featuers of Stainless Steel Screen Printing Mesh:
High tension.
Super precision.
Low enlongation.
High flexibility.
High corrosion resistant.
Non-electrostatic.
Good heat-melting resistant
Good solven resistant.
Specification of Stainless Steel Screen Printing Mesh:
| Specification | Mesh/inch | Wire Dia (mm) |
Open area Ratio(%) |
Apereture (mm) |
Thickness(mm)
|
Calendered Thickness (mm)
|
Theoretical lrk(cm^/m^) |
| 40*40*0.16 | 40 | 0.16 | 56.0 | 0.475 | 0.3-0.32 | As order | 179.1 |
| 60*60*0.12 | 60 | 0.12 | 51.3 | 0.303 | 0.23-0.245 | As order | 123.2 |
| 80*80*0.12 | 80 | 0.12 | 39.0 | 0.198 | 0.235-0.245 | As order | 92.9 |
| 80*80*0.09 | 80 | 0.09 | 52.0 | 0.228 | 0.175-0.18 | As order | 103.0 |
| 80*80*0.05 | 80 | 0.05 | 71.0 | 0.268 | 0.095-0.1 | As order | 78.0 |
| 100*100*0.1 | 100 | 0.1 | 36.8 | 0.154 | 0.195-0.205 | As order | 77.2 |
| 120*120*0.08 | 120 | 0.08 | 39.0 | 0.132 | 0.155-0.165 | As order | 65.8 |
| 150*150*0.06 | 150 | 0.06 | 41.7 | 0.109 | 0.115-0.124 | As order | 50.0 |
| 165*165*0.035 | 165 | 0.035 | 60.0 | 0.119 | 0.07-0.075 | As order | 48.0 |
| 165*165*0.045 | 165 | 0.045 | 50.1 | 0.109 | 0.088-0.093 | As order | 45.1 |
| 165*165*0.05 | 165 | 0.05 | 45.6 | 0.104 | 0.097-0.105 | As order | 45.6 |
Application of Stainless Steel Screen Printing Mesh:
1. Chemical filtering
2. Food and beverage for food filtering
3. Mining,main use coarse mesh,such as crimped wire mesh
4. Chip Electrical components,
5. Plasma Display Panel(PDP) ECT.
6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
7.Solar battery,
