High Tension Polyester Printing Mesh , Chip Electrical Components Fabric Mesh Screen
High Tension Stainless Steel Screen Precision Ultra Finer Used For Chip Electrical Components

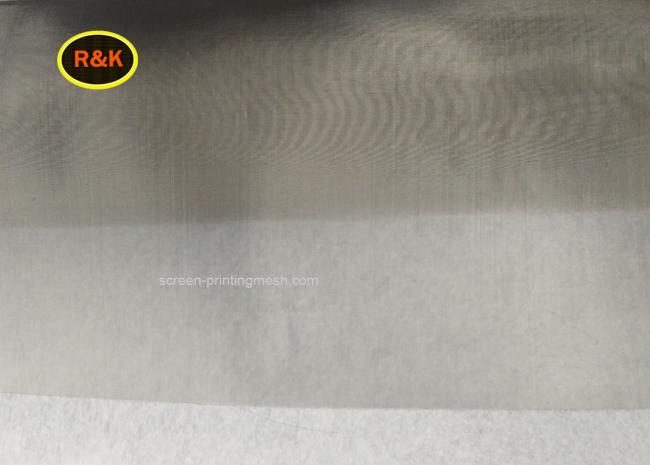

Description of the Steel Screen Printing Mesh :
High Tension Stainless Steel Screen Precision Ultra Finer Used For Chip Electrical Components by selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.
Stainless steel mesh is a stainless steel mesh used to filter liquid, gas and pulp.Generally speaking, this kind of wire mesh has standard opening size and even opening.Good permeability and high strength.Raw materials should be selected according to different application environments.
| Material | 316L |
| Weave | Plain weave |
| Features | High Tension |
| Size | Usually 1.02meter*30meter Per Roll |
| Sample | Free.The freight should be paid by buyer |
| Color | Primary colors |
Featuers of the Steel Screen Printing Mesh :
- High tension.Much higher than common polyester mesh,and this property is very stable
- Super Precision.Uniform wire diameter and aperture with extremely low difference
- Low Elongation.Very small elongation of wire mesh at high tension
- High Flexbility.The wire mesh will not lose elasticity at extreme tension
- High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia(μm) | Open area Ratio(%) | Apereture (μm) | Apereture(μm) | Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
Application of the Steel Screen Printing Mesh :
1. Chemical filtering
2. Food and beverage for food filtering
3. Mining,main use coarse mesh,such as crimped wire mesh
4. Chip Electrical components,
5. Plasma Display Panel(PDP) ECT.
6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
7.Solar battery,
