PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron

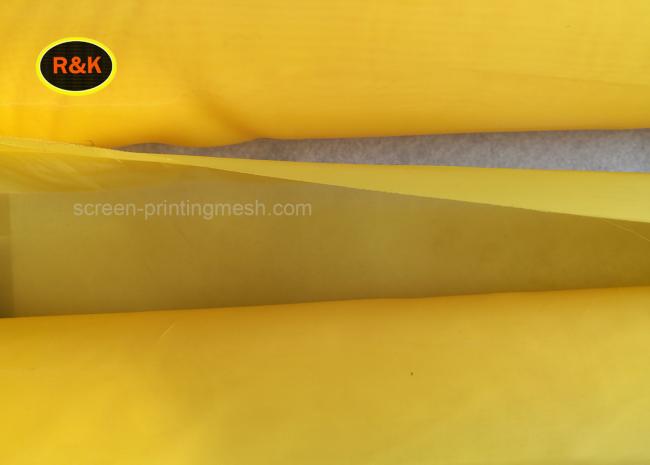

110 Screen Printing Mesh Description :
110 screen printing mesh is the best choose to printing textile,ceramic,glass,plstic,metal,screen printing plate, The cost is very cheaper for printing industry.
Bolting Fabric Yellow 110 Screen Printing Mesh Low Elasticity For PCB Printing is plain weave network for liquid crystal display.Hebei ruijin wire mesh co., LTD. Has been producing these products for 20 years.110mesh makes printing white and other thick ink easy.It is the ideal spot color printing because it holds less than 155 details and lays a thick layer of ink for maximum coverage.We registered R&K as pedals and registered intellectual property protection in major foreign sales areas.
| Material | 100% monofilament polyester |
| Roll width | Max width 3.05meter |
| Mesh count | 195 mesh/inch (77T/ cm) |
| Weave style | Plain weave |
| Color | white,yellow |
| Monofilament | Yes |
110 Screen Printing Mesh Specification
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
110 Screen Printing Mesh Features:
1. Long working life;
2. Hard wear;
3. Three factories for manufacturing;
4. Imported weaving machines from Switzerland and Italy;
5. Low enlongation;
6. Acid resistant;
7. Improved fabric strength;
8. Fast printing speed;
9. Fast tension stabilization;
10. Less tension loss during the stretching process;
110 Screen Printing Mesh Applications:
Ceramic Printing
Glass Printing
Textile Printing
Electronic Comeponeents Printing
PCB printing
Solar Printing
Touch Printing
