100% Polyester 110 Mesh , Silk Screen Fabric Mesh For Touch Printing
100% Polyester 77T Micron White Yellow 61T 110 Screen Printing Mesh For Touch Printing
Description of the 110 screen printing mesh:

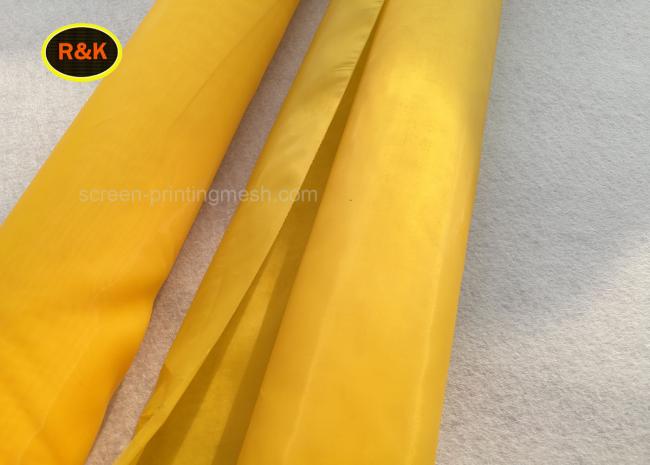

We can provide samples for free, as long as it is not more than two meters, but the freight is paid by the buyer.Low elasticity yellow 61T 110 screen printing mesh is plain weave mesh and used for Liquid Crystal Display.Hebei Reking Wire Mesh Co.,ltd has made these products for 20 years. We registered R&K as treadmark and we have registered intellectual propery protection in the foreign key sales areas.
| Name | Low Elasticity Yellow 61T 110 Screen Printing Mesh For Liquid Crystal Display |
| Material | 100% polyester |
| Roll width | Max width 3.05meter |
| Application | For Liquid Crystal Display |
| Color | Yellow,white |
Features of the 110 screen printing mesh:
- High tension threshold and breaking point
- high modulus,low elongation monofilament polyester yarn
- Resist to chemicals, abrasion, heat and moisture
- Minimal tension loss during stretching process
- Improved registration due to stable fabric tension
- Good antistatic
- No surface treatment
Specification of the 110 screen printing mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
Application of the 110 screen printing mesh:
Polyester screen printing mesh are widely used in textile and garment printing, glass printing,ceramic printing, electronic components printing,PCB printing,solar battery printing.Like the life printing,metal sheet print the company name.
