Low Elasticity Thermal Screen Printing Mesh Good Dimensional Stability

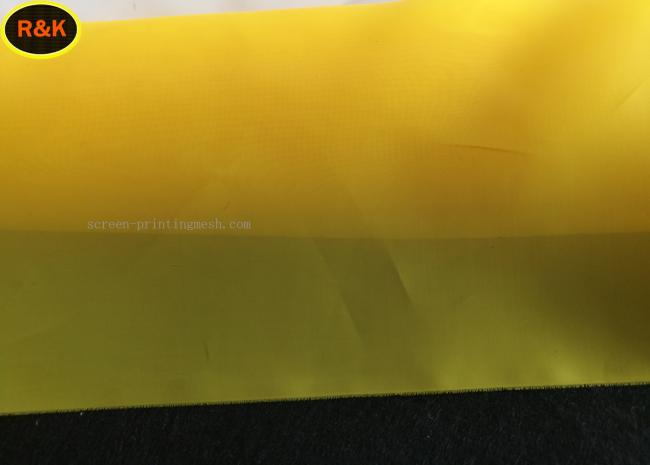

Low Elasticity PET Polyester Silk Screen Mesh Roll With Thermal Screen Printing Mesh
1. Descriptions of silk screen mesh roll with thermal screen printing mesh:
| Polyester silk screen printing mesh | |
| Weave Style | Plain Weave |
| Material | 100% polyester |
| Monofilament Style | Yes |
| Width | 0.6-3.65m |
| Mesh Count | 15-460 mesh/inch |
| Thread Diameter | 27-350 micron |
| Mesh Opening | 25-1270 micron |
| Thickness | 46-720 micron |
2. Feature Advantages of silk screen printing mesh roll with thermal screen printing mesh :
- Low Elongation polyester screen filter mesh
- Excellent tear and acid resistance
- Very good dimensional stability
- Faster tensioning without damage to the threads.
3. Application of silk screen printing mesh roll :
1. T-shirt /garment Commercial T-shirts/garment, advertising, fashion and sports clothing,
Flatbed textile Knitted fabric, blanket, chiffon silk even denim
High-end textile Full saturate front and back of the fabrics
Recommend mesh 10T-120T polyester screen printing mesh
2. Pharmacy appliance, Home appliance, Automotive glass, Glass container, etc.
Recommend mesh 39T-165Tpolyester screen printing mesh
3. Domestic ceramic, Indirect Ceramic, Ceramic tiles, etc.
Recommend mesh 39T-165T polyester screen printing mesh
4. Plastic package, plastic package, plastic bottle, advertising, plastic decoration, etc.
Recommend mesh 36T-165T polyester screen printing mesh
5. CD/DVD, PCB membrane switches/touch screen, PV and other high-grade electronic products
Recommend mesh 72T-165T polyester screen printing mesh
4. Specificaitons
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
