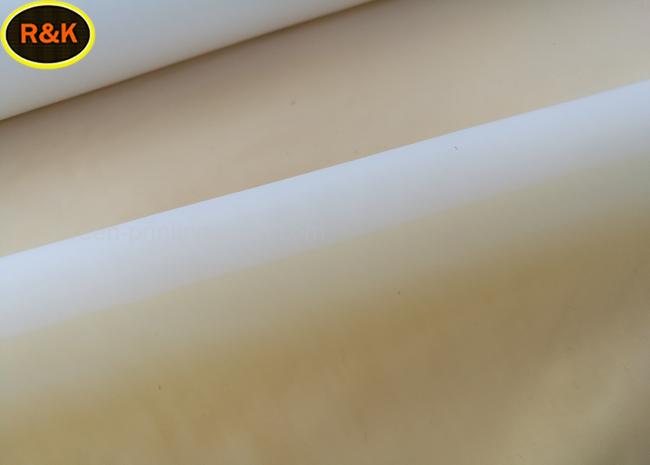

DPP 100 Mesh Thermal Screen Printing Mesh For Glass Printing Easy Install
DPP 100 Mesh Low Enlongation DPP Thermal Screen Printing Mesh For Glass Printing
Description For Thermal Screen Printing Mesh:
Polyester mesh is the carrier of the directly plate making and printing.Polyester printing mesh are widly used in ceramic print,glass print,textile print,graphic print, it is plain weave mesh,twill weave is not available on the printing industry.
Polyester printing mesh,the white color is more economical than yellow color, is primarily seen in low mesh counts used for less-detailed designs. Higher count mesh is commenly dyeing into yellow color,because it is the main factory to concelt the UV light and prevents refraction along the mesh stands when burning your screen.This allow us to focused on the precise exposure,keeping your screen as crisp as possible.
| Material | 100% polyester ,monofilament yarn |
| Mesh count | 13T/30mesh/inch - 165T/420 mesh/inch |
| Max width. | the max width upto 3.60 meter.high mesh upto 3.05meter |
| Color | white , yellow , red . |
| Quality | With high quality domectic and imported raw material,advanced weaving looms and test instruments. |
Specification For Thermal Screen Printing Mesh:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) |
Tension value (N/CM) |
| 165-31PW (S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24 |
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 |
| 120-34PW (T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 |
| 120-31PW (S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 |
| 110-40PW (HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 |
| 100-40PW (T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 |
Features For Thermal Screen Printing Mesh:
1). Good diathermancy;
2). Acid resistant alkali resistant;
3). Long work life printing material;
4). Hard wear printing material;
5). Faster turnaround time from the screen room to the pressroom;
6). High air permeability printing material;
7). Three warehouse for manufacturing
8). Imported weaing machine from Switzerland and Itday,Germany.
Application For Thermal Screen Printing Mesh:
1. T-shirt /garment Commercial T-shirts/garment, advertising, fashion and sports clothing,
Flatbed textile Knitted fabric, blanket, chiffon silk even denim
High-end textile Full saturate front and back of the fabrics
Recommend mesh 10T-120T
2. Pharmacy appliance, Home appliance, Automotive glass, Glass container, etc.
Recommend mesh 39T-165T
3. Domestic ceramic, Indirect Ceramic, Ceramic tiles, etc.
Recommend mesh 39T-165T
4. Stickers, labels, Small/Large Format UV Graphics, Package graphics, plastics, etc.
Recommend mesh 10T-165T
5. Plastic package, plastic package, plastic bottle, advertising, plastic decoration, etc.
Recommend mesh 36T-165T
6. CD/DVD, PCB membrane switches/touch screen, PV and other high-grade electronic products
Recommend mesh 72T-165T
