Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
25'' & 31'' Various Type of the aluminum Alloy Silk Printing Screen Frame
Silk screen aluminum frame can meet clints various of demands,and it is welded for great mesh adhesive.All corners are completely sealed to prevent ink from leaking
Silk printing screen frame detail specfication:
- 18'' * 20 '' * 35 mm * 35 mm * 1.2mm / 1.4mm, popular mesh count:43T-80W,54T-55W,72T-55W,80T-48W,100T-40W,100T-40Y,110T-40W,120T-34W,120T-34Y,140T-34Y.
- 20'' * 24'' * 35 mm * 35 mm * 1.2mm / 1.4mm, popular mesh count:43T-80W,54T-55W,72T-55W,80T-48W,100T-40Y,110T-40Y,120T-34W,120T-34Y,140T-34Y.
- 23'' * 31'' * 38 mm * 38mm * 1.4mm / 1.6mm,popular mesh count:43T-80W,54T-55W,72T-48Y,80T-48W,100T-40W,100T-40Y,110T-40W,120T-34W,120T-34Y,150T-31Y.
- 25'' * 36'' *38 mm * 38mm * 1.6mm / 1.8mm,popular mesh count:43T-80W,54T-55W,72T-48Y,80T-48W,80T-48Y,90t-48Y,100T-40Y,110T-40Y,120T-34W,120T-34Y,140T-34Y.
- Suggestion tension, from 20N - 25 N, If you don't have the tool,we can provide you the tensionmeter for test. we have two kind of the material of the tool,domestic quality & imported quality.
Silk printing screen frame advantages & features:
- Envrionmental friendly ALU alloy have apssed the standard of European ROSH
- 100% monofilament DPP polyester mesh,which ensure a high quality and consistent printing process.
- The mesh rugular tension from 17N to 25N in t-shirt printing and other textile,garment printing ect application field.
- Every frame will be inspect before ship to our customer,we can guarantee our quality is better when you got it,our packing will be plywood case or the cardboard box.
- The tolerance of the overall size,we can control within +/- 0.5mm,and the surface flat we can control within +- 0.1mm.
- The frame is very durable in high tension printing,corrosion resistant,no deformation,high recycle value.The frame specification types depends on the perious of overprint and printing graphic.
- Usually we use the mesh with high tension,low elongation,low elasticity,good tension stability.
- Strong printing durability,corrosion resistant,no deformation,high recycle value.
| Material |
6063 Aluminum alloy
|
| Standard size |
18''×20'' , 20''×24'', 23''×31'' , other size we can customized for you
|

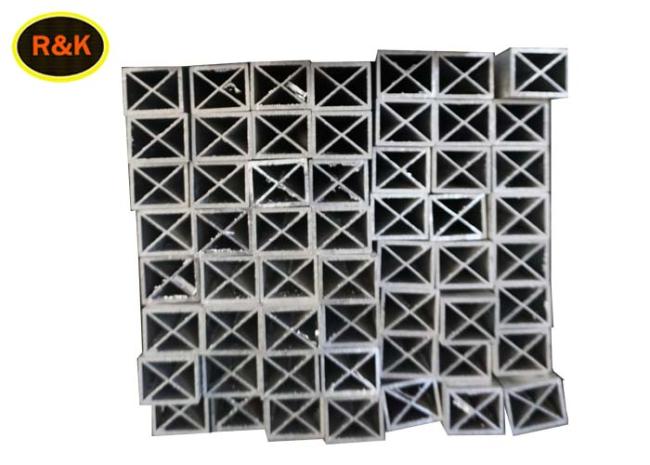

| Aluminum profile |
Rectangle type:
18mm×22mm×1.0/1.4mm 20mm×30mm×1.0/1.6mm 30mm×30mm×1.4mm 38mm×38mm×1.4mm 25mm×38mm×1.2/1.4/1.6/2.0mm
Grid type:
30mm×40mm×1.7/2.0mm 35mm×60mm×2.0mm 30mm×40mm×2.5mm 40mm×70mm×2.5mm
Heterotype:
25mm×25mm×1.0/1.2mm 30mm×30mm×1.0mm 25mm×40mm×1.0mm 25mm×41mm×1.2/1.4mm
|
| Application |
Aluminum frame are widely used in testile,glass, garment,ceramic printing,CD/DVD printing,advertising printing,plate printing and so on.
|

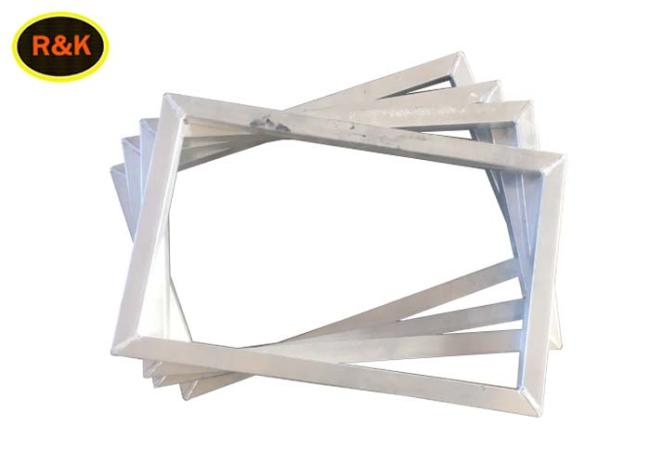

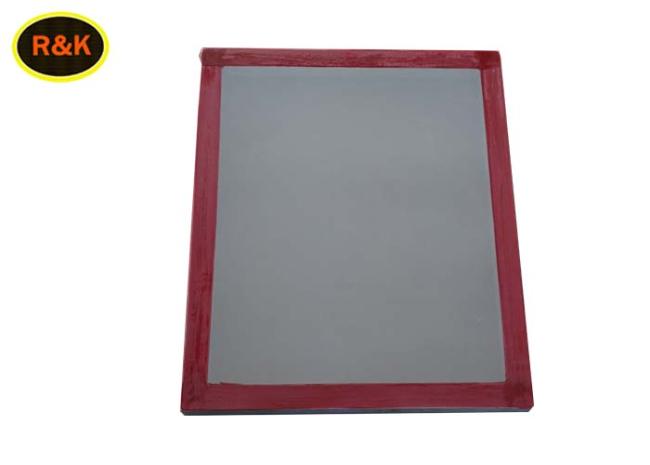

Photos For The Silk Printing Screen Frame:
