Silk Screen Printing Mesh High Flexibility Screen Making Materials
Silk Screen Printing Mesh High Flexibility Screen Making Materials

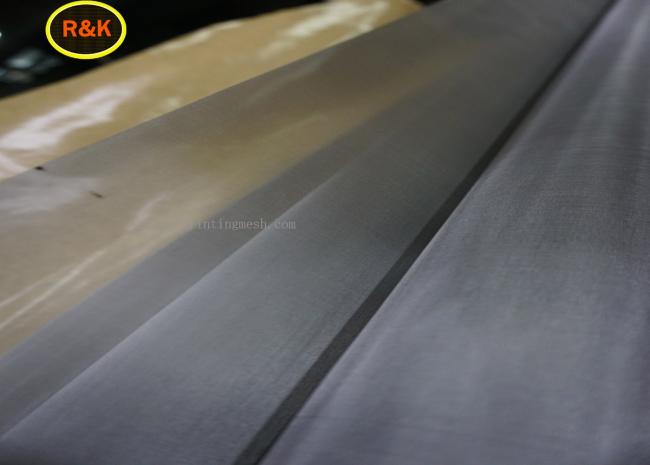

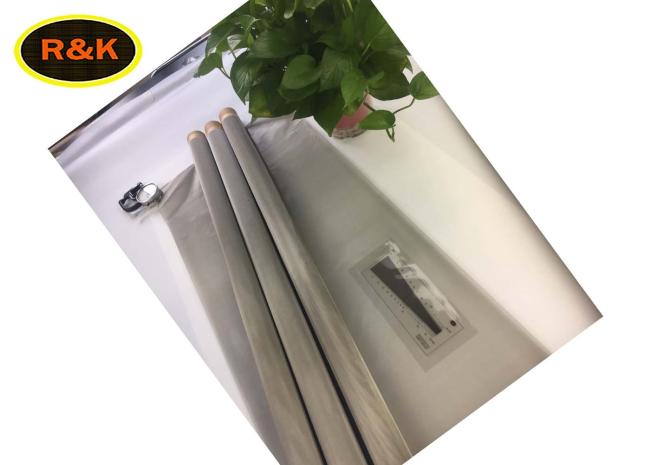

Descriptions of Stainless steel wire mesh screen printing materials:
Materials:Stainless steel wire mesh used AISI302, 304,304L,316,316L,430,309,310S stainless steel wire as raw material.
Wire Diameter: 0.015-1.8mm
Mesh Count :
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3200mesh
Aperture: 0.03-10mm
Characters of stainless steel screen printing materials :
1. High tension:Much higher tension than common polyester mesh,and the property is very stable.
2. Super precision:Uniform wire diameter and aperature with extremely low difference.
3. Low elongside:Very small elongation of wire mesh.
4. High Flexibility:the mesh don't lose clasticity at extreme tension.
Advantages of 304 ,316, 316 L stainless steel screen printing materials:
1. Super precision:Uniform wir ediameter and aperture with extremely low difference.
2. Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
3.. Good Solvent Resistance :Special features of steel wire mesh.Suitable for heat-melting ink.
4. High Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Specifications of 304, 316 ,316L stainless steel screen printing materials:
| Mesh/Inch |
Wire Diameter (μm) |
Aperture(μm) |
Open Area (%) |
Thickness(μm) |
Theoretical Ink (cm3/m2) |
| 40 | 160 | 475 | 56.0 | 300-320 | 179.1 |
| 60 | 120 | 303 | 51.3 | 230-245 | 123.21 |
| 80 | 50 | 268 | 71.0 | 95-100 | 78.0 |
| 80 | 90 | 228 | 52.0 | 175-180 | 103.0 |
| 80 | 120 | 198 | 39.0 | 235-245 | 92.9 |
| 100 | 100 | 154 | 36.8 | 195-205 | 77.2 |
| 120 | 80 | 132 | 39.0 | 155-165 | 65.8 |
| 150 | 60 | 109 | 41.7 | 115-124 | 50.0 |
| 165 | 35 | 119 | 60.0 | 70-75 | 48.0 |
| 165 | 45 | 109 | 50.1 | 88-93 | 45.1 |
| 165 | 50 | 104 | 45.6 | 97-105 | 45.6 |
| 180 | 45 | 96 | 46.4 | 88-93 | 41.5 |
| 180 | 50 | 91 | 42.0 | 98-104 | 41.7 |
| 200 | 40 | 87 | 46.9 | 82-84 | 43.0 |
| 200 | 50 | 77 | 37.0 | 98-103 | 42.0 |
| 230 | 35 | 75 | 46.7 | 72-76 | 37.0 |
| 250 | 40 | 62 | 36.8 | 82-86 | 34.0 |
| 250 | 30 | 72 | 49.7 | 64-68 | 30.0 |
| 250 | 35 | 67 | 43.0 | 76-78 | 32.0 |
| 270 | 35 | 59 | 39.4 | 76-80 | 30.0 |
| 290 | 20 | 68 | 41.7 | 43-44 | 18.0 |
| 300 | 30 | 55 | 38.0 | 66-68 | 28.0 |
| 325 | 28 | 50 | 41.2 | 63-64 | 26.4 |
| 325 | 23 | 55 | 49.8 | 49-53 | 25.4 |
| 350 | 25 | 48 | 43.0 | 52-54 | 18.7 |
| 400 | 23 | 41 | 40.7 | 50-54 | 19.0 |
