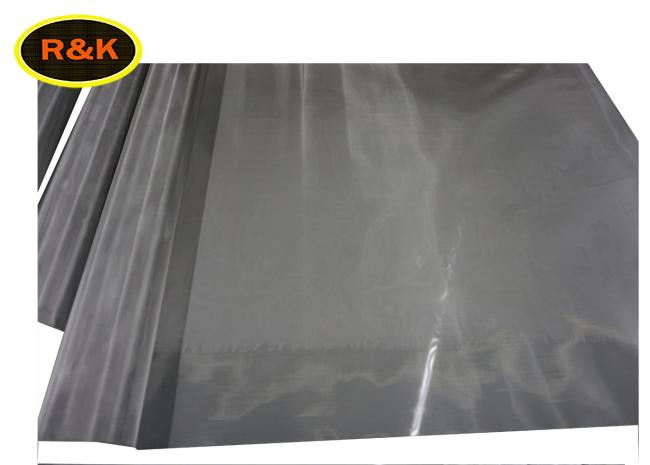

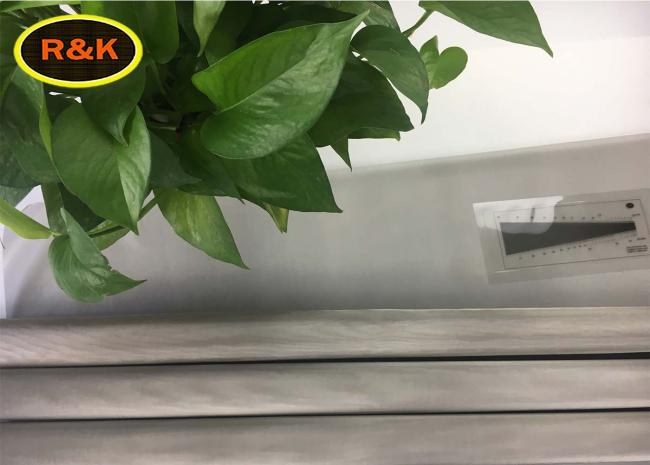

40" , 48" , 60" Stainless Steel Screen Printing Mesh Corrosion Resistant
Screen Printing Mesh Stainless Steel Wire Mesh Printing Mesh Material
Stainless steel wire mesh be weaved with stainless steel wire,and this mateiral is very anti-resistant,corrosion resistant,we also can do accept OEM,if you need special size,please email to us.
Application for screen printing mesh:
Widely used in petroleum,chemical industry,aerospace,scientific research and transportation industries.eletroplating infustry for picking mesh,printing mesh battery industry screen printing and a varity of sophisticated filteration products.
Introduce For The High Tension Wire Mesh:
| Material | SUS 304N,304HP,316 |
| Mesh count | 80mesh/inch-500mesh/inch |
| Wire diameter | 18micron-160 micron |
| Standard width | 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you. |
| Standard length | 30 meters |
| Weave style | plain weave . 1:1 |
| Mesh thickness | Please refer to our specification |
Features for High Tension Wire Mesh:
Low Elongatation;High tension;
Heat resistant;High stability;
High flexibilityNon-electrostatic
Abrasion resistant;Good Solvent resistant;
Chemical & Thremal resistant;Excellent resistant to abrasion;
Excellent levels of plasticity;and so on...
Specification for High Tension Wire Mesh:
| Mesh/ inch |
Wire diameter (µm) |
opening (%) | Aperture (µm) |
Mesh thickness (µm) |
One time calender (µm) |
Two time calender (µm) |
Suggestion tension (N/CM) |
Ink thickness (cm3/㎡) |
| 40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 |
| 50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 |
| 60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 |
| 80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 |
| 80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 |
| 80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 |
| 100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 |
| 120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 |
| 150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 |
| 165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 |
| 165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 |
| 180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 |
| 180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 |
| 200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 |
| 200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 |
| 230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 |
| 250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 |
| 250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 |
| 250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 |
| 270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 |
| 300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 |
| 325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 |
| 325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 |
| 325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 |
| 350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 |
| 400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 |
| 400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 |
FAQ for High Tension Wire Mesh:
A: How to got your sample?
B: Please send us your courier account,or pay for us the freight cost,we can send to you directly.
A: Are you trade or manufacturer?
B: We are the manufacturer for this stainless steel screen printing mesh,our factory located in Anping county.
A: How to arrive your plant?
B: We can pick up you from your hotel,or the airport & train station.
A: When you can ship out the goods?
B: If you need more,we can ship out within 15days,if you need small,we can ship out within 5days.
A: Which payment terms do you have?
B: T/T,Western Union,Paypal,L/C,Trade asscurance,Credit card.please choose the convenient way for you.
Certification for the High Tension Wire Mesh:
