Acid Resistant Monofilament Polyester Screen Fabric For Automotive Glass Printing
Polyester Screen Printing Mesh For Automotive Glass Printing 165 Width Acid Resistant
Description of the screen printing mesh:
Reking Polyester screen printing mesh with high quality domestic and imported monofilament polyester yarn to weave,we introduce the advanced weaving looms and test instruments. we have the compeletment system for testing the finished goods, before ship out the goods,we all can test them to guarantee our quality can meet your requirements.
| Polyester mesh Material | 100% monofilament polyester yarn |
| Polyester mesh mesh count | 25 mesh to 460 mesh per inch( 10 T - 180 T) |
| Polyester mesh thread diameter | 27 micron - 300 micron |
| Polyester mesh aperture size | 23 micron - 800 micron |
| Polyester mesh popular color: |
white ,yellow color, usually the black color is used for waterproof screen or dustproof screen. if you need this kind of filter mesh and black mesh,we also can provide you a best price for your reference. |
Characteristic of the Screen printing mesh:
-- Minimum tension loss during stretching.
-- Due to the stability of fabric tension, the registration rate is improved.
-- Good anti-static.
-- No surface treatment.
-- High tension threshold and breaking point.
-- High modulus, low elongated single filament polyester yarn.
Specification of the screen printing mesh:
| Mesh count | Aperture(um) | Thickness(um) | Weight(g/m2) | Opening(%) | Weave |
| 13T/33-150 | 619 | 300 | 60 | 64 | 1:1 |
| 21T/55-80 | 296 | 120 | 35 | 69 | 1:1 |
| 21T/55-150 | 326 | 260 | 121 | 46 | 1:1 |
| 24T/60-100 | 317 | 136 | 81 | 57 | 1:1 |
| 28T/70-140 | 217 | 195 | 125 | 40 | 1:1 |
| 32T/80-55 | 257 | 103 | 28 | 67 | 1:1 |
| 32T/80-64 | 248 | 95 | 32 | 63 | 1:1 |
| 32T/80-100 | 212 | 165 | 75 | 45 | 1:1 |
| 36T/90-90 | 183 | 150 | 68 | 44 | 1:1 |
| 39T/100-55 | 177 | 88 | 30 | 56 | 1:1 |
| 48T/120-70 | 133 | 115 | 55 | 41 | 1:1 |
Application of the screen printing mesh:
Textile printing;
Garment(T-shirt) printing;
CD/DVD printing;
Glass printing ;
Ceramic printing ;
Electronics components printing.
The screen printing mesh is also used well in filteration industry,such as ink filter,aviation,aerospace,petrochemical and other high-tech fields of melt filter etc.

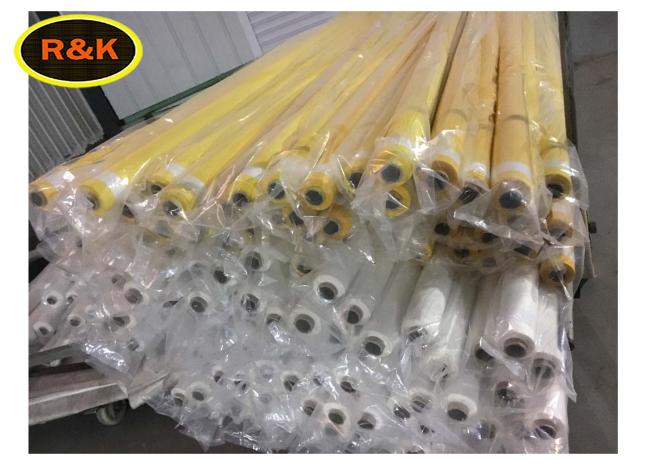

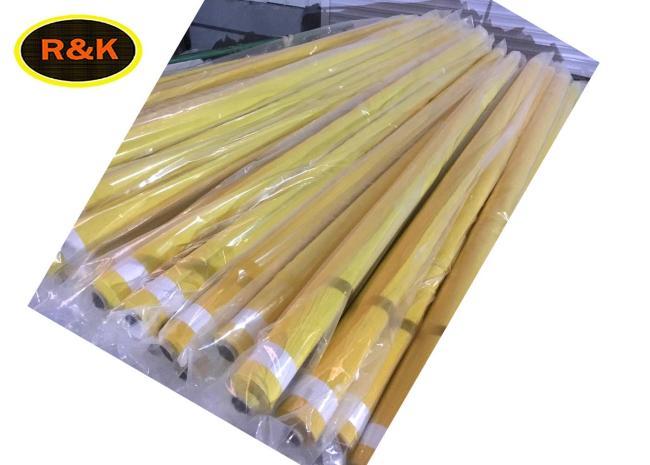

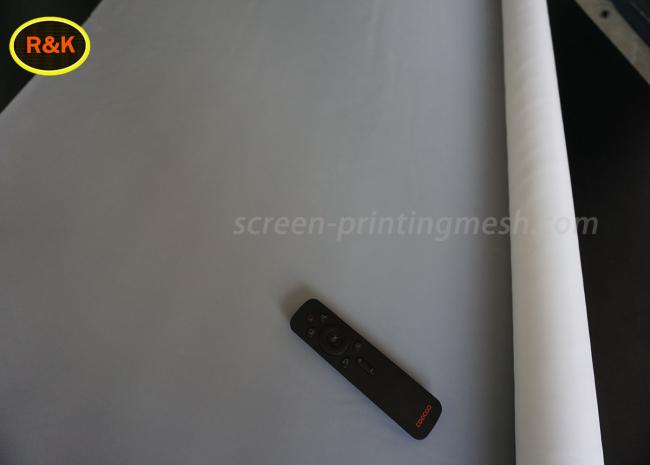

Photo of the screen printing mesh:
