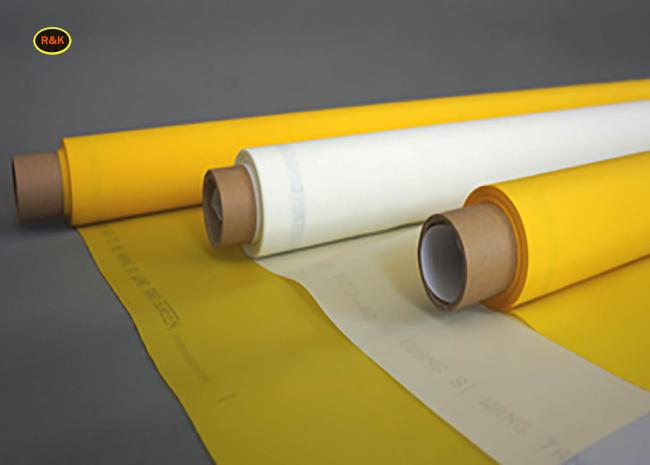

120T-34W Plain Weave Silk Screen Printing Wire Mesh Roll White/Yellow
120T-34W Plain Weave Silk Screen Printing Wire Mesh Roll White/Yellow
Details of the 30 micron polyester screen mesh:
Reking wire mesh always use the high quality to meet our client request, we have about 150sets machine to produce this kind of mesh, we use the advanced weaving looms and high quality imported and domestic raw material.
Details of the 30 micron polyester screen mesh:
Material: 100% polyester mono filament yarn
Certification:FDA,MSDS,ROSH,SGS,ISO 9001
Mesh: 420 mesh per inch
Thread diameter: 31 micron
Color: white is popular,other color is for particular purpose.
Aperture size: 30 micron
We can produce the mesh from 10T - 180T.
the popular specification are
43T-80/
54T-64/
64T-55/
90T-48/
100T-40/
120T-31/
140T-34/
150T-31/
180T-27.
Advantages:
Acid resistant,
Good filter value,
Precision filteration,
Heat resistant, the highest degree about 180 ℃-230℃
Strong Water-proof
Durable in water.
Lack of money than other mesh
Specification of the polyester filter mesh:
| Mesh Count Diameter (Mesh/cm µm) | Mesh Count (Mesh/inch) | Weave | Aperture (µm) | Thread Diameter (µm) | Opening (%) | Thickness (µm) | Thickness Tollerance (+/- µm) | Theoretical Ink (cm3/m2) | Weight (g/m2 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
| 165-31PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
|
PW:(Plain Weave);TW:(Twill Weave); S T HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request. |
|||||||||
