T / X Shape Customized Screen Printing Frame With Polyester Mesh For Cloth Printing
T Shape / X Shape Customized Size Aluminium Frame With Polyester Mesh For Cloth Printing
Product Introduction

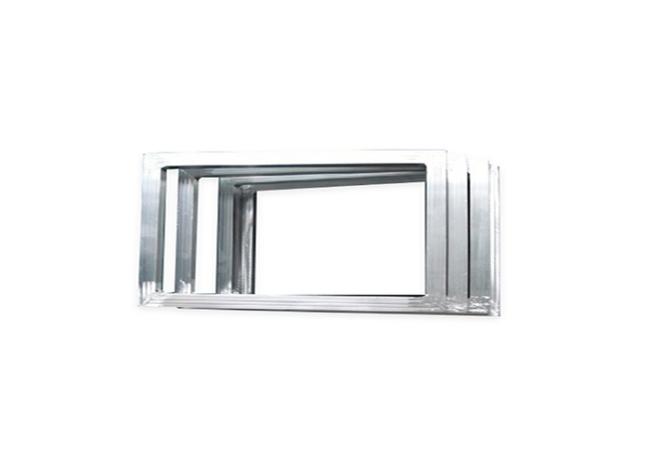

Aluminum screen printing frame, this T series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
The mesh frame is the most original element in screen printing.The screen print is a screen image with a template that is useless if the screen cannot be fixed to a stationary frame.The mesh frame has many dimensions, shapes, and features.They consist of several different materials, mainly wood, aluminum, magnesium and steel.Regardless of their composition, shape or style, all grid boxes perform equally important functions in screen printing.
Aluminum screen printing frame, this T series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
Product Specification
| Suit for ceramic,printing paper,PCB manufactures,waistline manufactures ect. | |
| material code | size |
| B1 | 25*38*0.9MM |
| B2 | 25*38*1.1MM |
| B3 | 25*38*1.3MM |
| B4 | 25*40*1.7MM |
| B5 | 25*50*1.2MM |
| B6 | 28*50*1.4MM |
| B7 | 28*43*1.2MM |
| B8 | 25*43*1.4MM |
| B9 | 28*43*1.8MM |
| B10 | 28*43*2.0MM |
| B11 | 30*40*3.0MM |
| B12 | 30*40*3.0MM |
| B13 | 30*60*1.6MM |
| B14 | 30*60*2.2MM |
| B15 | 35*60*2.0MM |
Product Features:
Light weight frame for quick and easy handling.
Aluminum is made to our specific alloy for high resistance, maximum strength and hardness
Easy clean up and long lasting durability
Corners are carefully welded to provide leak free frames
Mesh count:18-420mesh/inch or 7~165 mesh/cm
Product Application:
Our screen printing frames are feature of smooth appearance, free of deformation,
and durable in use. Argon arc welding technique to ensure watertight and ground
flat. Stretched with top quality low elongation polyester mesh and bonded with
highest chemical resistance glue. Revolving-Riveting stretching technology to insure optimal tension.
Aluminum frame widely used for M&R,TAS,MHM and Lucky automatic textille screen printing machine and other printing machine
|
1. Apply to textile screen printing industry |
|
2. Apply to large advertisement industry |
|
3. Apply for auto-printing machine |
|
4. Apply to: High precise LCD, high precise multi-layered circuit board and electronic printing ect. |
|
5. Apply to textile screen printing industry |
