160 Micron Rotary Stainless Steel Screen Printing Mesh Plain Weave Style
160 Micron Rotary Stainless Steel Screen Printing Wire Mesh Fabric
Introduce For The Stainless Steel wire mesh cloth:
Product Name:160 Micron Rotary Stainless Steel Screen Printing Wire Mesh Fabric
Material: SUS 304N,304HP,316.
Mesh count: 40mesh/inch-400mesh/inch
Wire diameter: 18micron-160 micron
Width: 127cm,165cm,183cm,or as your requirements
Length: 30m,50m,100m and as your requirements
Weave style: Plain weave.1:1
MOQ:1m
Package:Paper tube packaging and plastic bags outside
Mesh thickness:please see our specification.
Features For Stainless Steel wire mesh cloth:
High pressure;
Heat resistance;
High stability;
High flexibility
Non - electrostatic
Wear resistance;
Good solvent resistance;
Chemical and salt resistance;
Excellent wear resistance;
Good plasticity;
And so on...
Application For Stainless Steel wire mesh cloth:
Reking Stainless steel screen printing mesh are mainly used in FPD printing,Creamic printing industy,touch screen printing,glass printing industry,the solar battery printing,LCD printing,electronic components printing,thick film printing ect...
Specification For Stainless Steel wire mesh cloth:
| Mesh/ inch |
Wire diameter (µm) |
opening (%) | Aperture (µm) |
Mesh thickness (µm) |
One time calender (µm) |
Two time calender (µm) |
Suggestion tension (N/CM) |
Ink thickness (cm3/㎡) |
| 40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 |
| 50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 |
| 60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 |
| 80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 |
| 80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 |
| 80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 |
| 100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 |
| 120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 |
| 150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 |
| 165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 |
| 165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 |
| 180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 |
| 180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 |
| 200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 |
| 200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 |
| 230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 |
| 250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 |
| 250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 |
| 250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 |
| 270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 |
| 300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 |
| 325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 |
| 325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 |
| 325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 |
| 350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 |
| 400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 |
| 400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 |

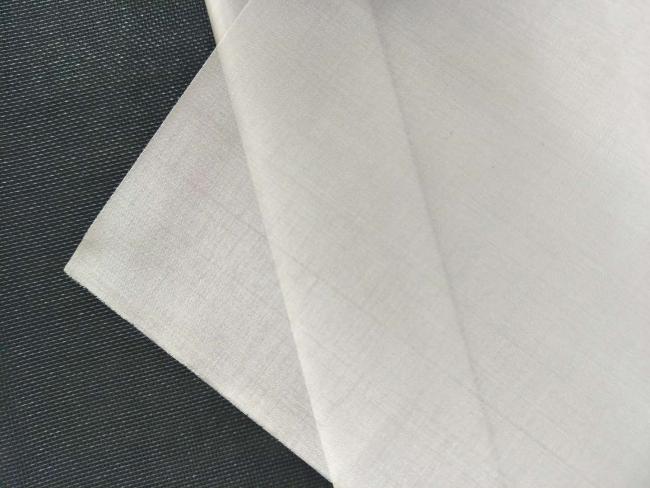

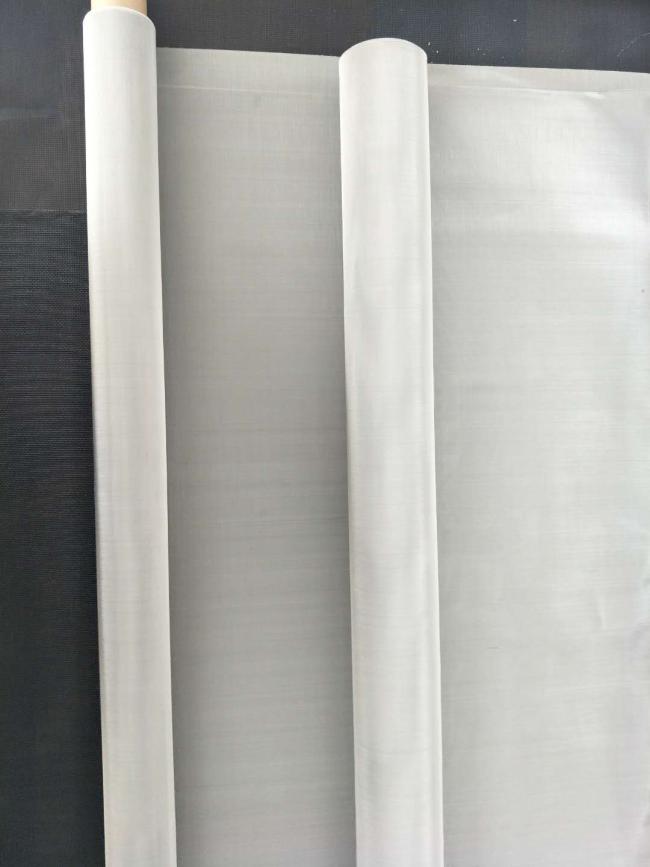

Photos for the Stainless Steel wire mesh cloth:
The workshop of the stainless steel steel wire mesh cloth:
