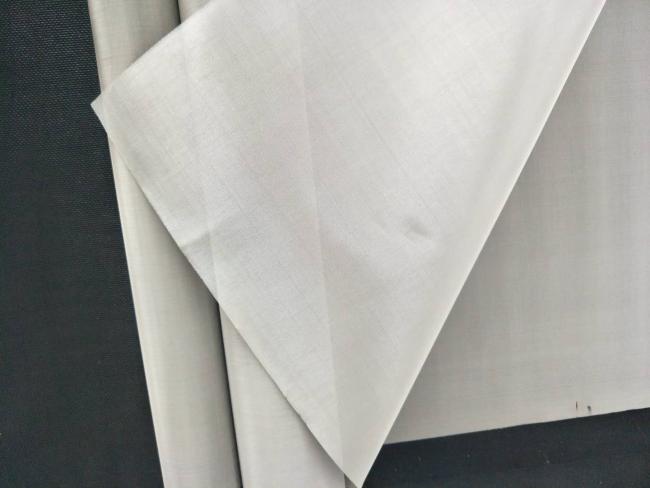

304 316 Stainless Steel Wire Mesh Silver Color Screen Printing Mesh Roll
304 316 Stainless Steel Wire Mesh Silver Color Screen Printing Mesh Roll
Description of stainless steel wire mesh:
Because the tension tension of stainless steel mesh is higher than polyester mesh, the mesh frame is generally made of metal, such as cast aluminum, medium hole aluminum alloy and other materials.Pay attention to the grid at ordinary times, the grid frame should be flat, not flat
It will affect the operation of the tension grid and even break the tension grid. It is necessary to use pneumatic or mechanical tension grid machine, and adjustable self-tension grid frame can also be used.
The most basic and important characteristic parameters of stainless steel mesh are line diameter (d) and mesh width (W) as shown in the figure. Other parameters are basically derived from them.
| material | SUS304N,304HP,316,316L,304L |
| weave type | plain weave |
| size per roll | usually 30 or 50 meter per roll |
| wire diameter | 0.018-0.02mm |
| aperture size | 41-268micron |
| hole shape | square hole |
Features of stainless steel wire mesh:
- High tension.Much higher than common polyester mesh,and this property is very stable
- Super Precision.Uniform wire diameter and aperture with extremely low difference
- Low Elongation.Very small elongation of wire mesh at high tension
- High Flexbility.The wire mesh will not lose elasticity at extreme tension
- High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
- Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
- Good Heat-melting Resistance.Special features of steel wire mesh.Suitable for heat-melting ink
- Good Solvent Resistance.To avoid the affects of any solvents to wire mesh and to ensure the safety of printing
Application of stainless steel wire mesh:
Stainless steel screen printing is suitable for direct platemaking, surface is surface substrate, such as: glass, ceramics, metal, plastic, rubber, printing circuit, etc.Especially suitable for use in harsh environments, multicolor overprinter, mass printing, step printing, precision printing.Due to the small size of wire mesh, high mesh can be woven, and the strength and elastic modulus of large, good plane stability.However, the wire mesh is rigid, easy to generate indentation when impacted, poor resilience is not suitable for restoration, and it is not suitable for printing substrate with poor flatness.
Specification of stainless steel wire mesh:
| Mesh/inch | Wire diameter (inch) | Aperture (inch) | Open area | Weight (Sqaure meter) |
| 1*1 | 0.080 | 0.920 | 92.0 | 2.0 |
| 2*2 | 0.063 | 0.437 | 87.4 | 2.5 |
| 3*3 | 0.054 | 0.279 | 83.8 | 2.7 |
| 4*4 | 0.047 | 0.203 | 81.2 | 2.7 |
| 5*5 | 0.041 | 0.159 | 79.5 | 2.6 |
| 10*10 | 0.024 | 0.076 | 74.9 | 1.8 |
| 12*12 | 0.020 | 0.064 | 75.9 | 1.5 |
| 14*14 | 0.020 | 0.052 | 71.9 | 1.75 |
| 16*16 | 0.018 | 0.045 | 71.2 | 1.6 |
| 18*18 | 0.016 | 0.0398 | 69.4 | 1.4 |
| 20*20 | 0.009 | 0.041 | 76.0 | 0.57 |
| 30*30 | 0.012 | 0.0382 | 63.9 | 1.35 |
| 40*40 | 0.0098 | 0.015 | 72.1 | 1.25 |
| 50*50 | 0.0079 | 0.0121 | 36.7 | 1.0 |
| 60*60 | 0.0047 | 0.012 | 38.7 | 0.42 |
| 80*80 | 0.0047 | 0.0107 | 45.5 | 0.58 |
| 100*100 | 0.0039 | 0.006 | 59.8 | 0.50 |
| 120*120 | 0.0027 | 0.0056 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.0043 | 41.6 | 0.27 |
| 165*165 | 0.0018 | 0.0043 | 50 | 0.167 |
| 180*180 | 0.0019 | 0.0036 | 64.5 | 0.22 |
| 200*200 | 0.0019 | 0.003 | 60.6 | 0.24 |
| 250*250 | 0.0012 | 0.0028 | 49.8 | 0.11 |
| 270*270 | 0.0014 | 0.0023 | 60 | 0.16 |
| 300*300 | 0.0012 | 0.0022 | 57 | 0.13 |
| 325*325 | 0.0014 | 0.0017 | 55.3 | .0.20 |
| 400*400 | 0.0012 | 0.0013 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.001 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.0008 | 55.0 | 0.10 |
