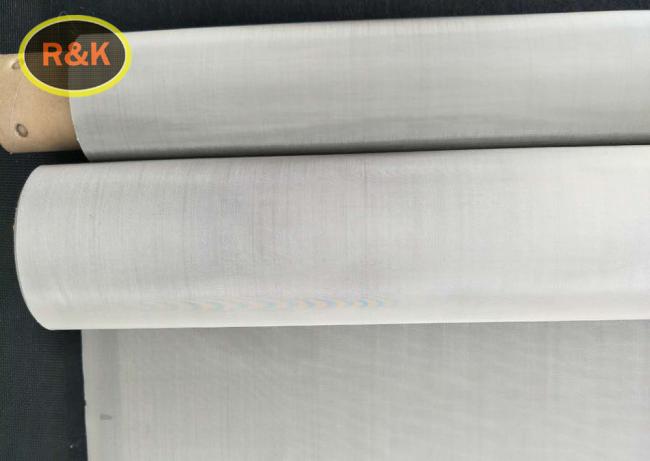

304N 120 Micron Stainless Steel Wire Mesh For Glass Screen Printing
Price:
negotiation
MOQ:
50 square meter
Delivery Time:
Within 8 work days
Brand:
R&K
Product Description
304N 120 Micron Stainless Steel Wire Mesh For Glass Screen Printing
Description of stainless steel wire mesh:
| Material | stainless steel wire 304N |
| weave | Plain weave |
| Mesh count | 1-3200mesh |
| Roll Length | usually 30m |
|
Aperture |
120 micron |
| Application | Glass Printing |
Features of the stainless steel screen printing mesh:
Long working life.
High tension.
Super precision.
Low enlongation.
High flexibility.
High corrosion resistant.
Non-electrostatic.
Good heat-melting resistant
Good solven resistant.
Applications of the stainless steel screen printing mesh:
Solar battery,
Pinted Circuit Board(PCB),
Chip Electrical components,
Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.
Specification of the stainless steel screen printing mesh:
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
