Width 9cm Screen Printing Squeegee Blade Material Red Roll 75A 65A 80A
Polyurethane Screen Squeegees Red Roll 75A 65A 80A For Screen Printing
1.Brief Introduction of the screen printing squeegee:
Screen printing squeegee is one tape material ,mainly used for screen printing industry,It is also known as Squeegee.
Most of squeegee material is PU material,and also have some made of polyurethane.
Our squeegee material is polyurethane.
According to the features of the material of screen printing,Printed patterns of different densities and the different printing types,
The squeegee have different hardness and different section shapes,we can selecte from them.
2.Detailed specifications of the aqueegee is as below:
Often with shao hardness expresses, have: 55 degrees, 60 degrees, 65 degrees, 70 degrees, 75 degrees, 80 degrees, 85 degrees.
Section shape generally has right Angle type, sharp Angle type and circular arc type.
50*9mm, 55*9mm, 45*9mm, 50*7mm, 45*7mm, 40*7mm,
55*5mm, 50*5mm, 45*5mm, 40*5mm, 35*5mm, 25*5mm and so on.
| Screen Printing squeegee specification | |||
| Color | Hardness | Shore A | Suggestion |
| Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth, various of ink and various of the prints. |
| Blue | Hard | 80-85 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| Green/White/ Green |
Triple medium |
75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium |
65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
3.Features of the squeegee is as below:
- Good elasticity,
- Sharp blade,
- Small swelling ratio,
- Easy to wear,
- Resistant to different solvents,
- Long service life.
- Perfect packaging
- Beautiful look
4.Application of the squeegee:
It can be used for many ways.
Usually many textiles industry need the squeegee and together with printing mesh,it can print many kinds of patten.
Many people also use it for printing advertising.
Like Glass factory and Paper flowers factory ,Bottles industry,they all need the squeegees to printing patten.
Other industry ,like Containers industry,packaging industry,panels industry,PCB ,Electronics,CDs PVC all need squeegee.

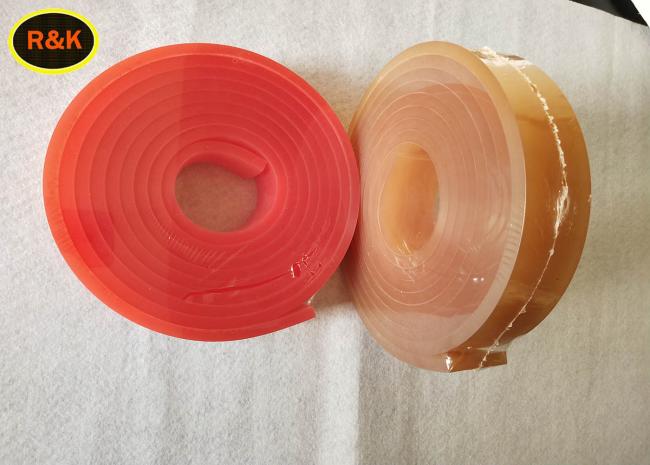

Photo for the Squeegee :
