High Elasticity 70 100 160 230 300 Silk Mesh Screen Glass Screen Printing Mesh
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
5-10 work days.
Brand:
R&K
Product Description

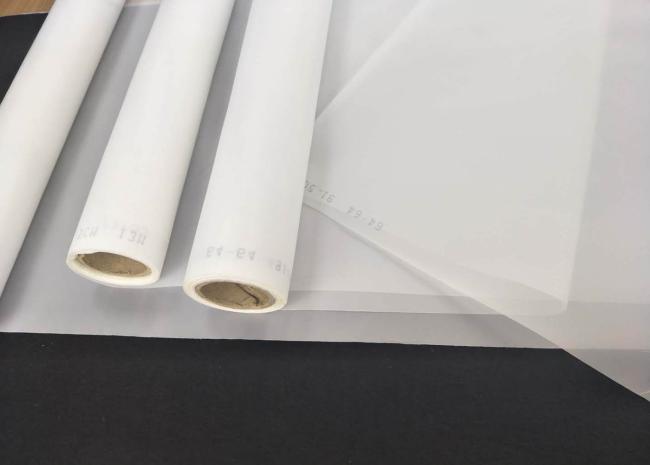

Yellow Color High Elasticity 300 Micron 120 T Mesh Glass Screen Printing Wholesale Supplies
Procuct Introduction:
| Model: | R&K - Rosin |
| Material: | 100% Nylon Mesh / 100% Polyester Mesh |
| Type: | nylon printing mesh |
| Weave Style: | Plain Weave |
| Mesh opening: | 25/37/73/90/120/160/190 micron or customized |
| Monofilament Style: | Yes |
| width: | 1m,1.27m,1.35m |
| Shapes: | square shape |
| Usage: | screen printing |
| Feature: | Recyclable |
| Packaging: | paper tube and then wooden case |
| G.W.: | 10kg |
Monofilament polyester mesh screen (low-elongation) is available with a wide range of mesh counts and has significant
advantages compared with traditional polyester mesh.
Feature of the printing mesh:
1. Easy cleaning.
2. Easy squeezing.
3. Hanging loop.
4. Multi-purpose, making nut milk, juice, coffee, red wine, cheese, etc.
5. Size, shape, packing can be customized.
6. FDA certificate is avaliable, safety material.
Specifications of the nylon mesh:
| Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter (um) | Mesh opening (um) | Open Area(%) | Thickness (um) | Theoretic ink volume (cm3/m2) |
| NL5/1500 | 5 | 13 | 500 | 1500 | 56 | 1000 | 308 |
| NL24/267 | 24 | 60 | 150 | 267 | 41 | 305 | 130 |
| NL28/207 | 28 | 70 | 150 | 207 | 34 | 278 | 150 |
| NL30/213 | 30 | 76 | 120 | 213 | 41 | 230 | 105 |
| NL32/213 | 32 | 80 | 100 | 213 | 46 | 240 | 77 |
| NL36/178 | 36 | 90 | 100 | 178 | 41 | 195 | 86 |
| NL40/150 | 40 | 100 | 100 | 150 | 36 | 192 | 95 |
| NL44/127 | 44 | 110 | 100 | 127 | 31 | 175 | 105 |
| NL48/128 | 48 | 120 | 80 | 128 | 38 | 150 | 73 |
| NL56/120 | 56 | 142 | 60 | 120 | 44 | 110 | 48 |
| NL59/110 | 59 | 150 | 60 | 110 | 42 | 98 | 50 |
| NL64/96 | 64 | 163 | 60 | 96 | 38 | 120 | 55 |
| NL72/89 | 72 | 183 | 50 | 89 | 41 | 90 | 44 |
| NL80/75 | 80 | 203 | 50 | 75 | 36 | 93 | 48 |
| NL88/74 | 88 | 224 | 43 | 74 | 42 | 65 | 34 |
| NL96/64 | 96 | 244 | 43 | 64 | 38 | 76 | 37 |
| NL100/60 | 100 | 254 | 43 | 60 | 36 | 78 | 39 |
| NL104/56 | 104 | 264 | 43 | 56 | 34 | 79 | 35 |
| NL110/48 | 110 | 280 | 43 | 48 | 28 | 79 | 38 |
| NL120/43 | 120 | 305 | 43 | 43 | 27 | 80 | 46 |
| NL130/34 | 130 | 330 | 43 | 34 | 20 | 85 | 29 |
| NL140/33 | 140 | 355 | 38 | 33 | 21 | 85 | 28 |
