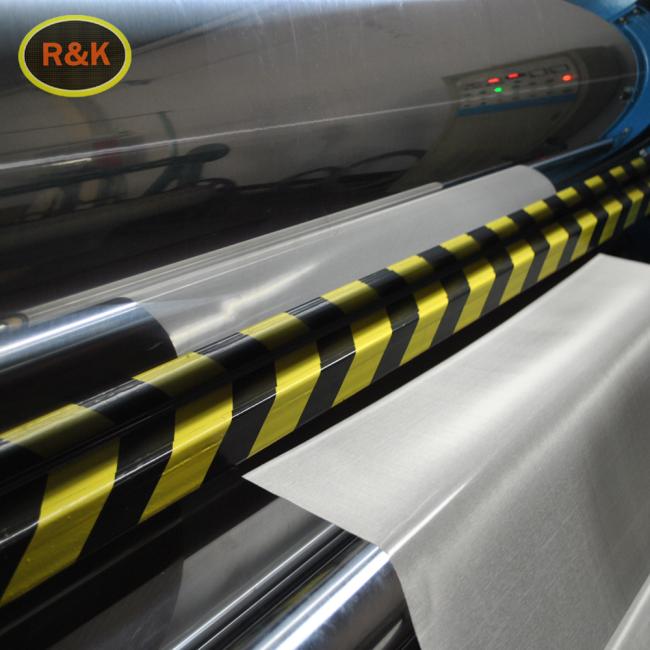

High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth
High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth
Description of stainless steel wire mesh:
Stainless Steel Wire Clothes for Screen Printing is used in many widely fields, such as medical equipment electronics package, liquid crystal device, SMD, idea for manufacturing in high precision wire mesh screen printing technology for printed circuit board. Tensile strength 1000-1100N/mm2, 600-800N/mm2 for strength yield point for special for high-tensile stainless steel wire, and mesh with uniform thickness and guaranteed mesh size uniformity to be essential for high precise stainless steel wire cloth.
| material | SUS304N,304HP,316,316L,304L |
| weave type | plain weave |
| size per roll | usually 30 or 50 meter per roll |
| wire diameter | 0.018-0.02mm |
| aperture size | 41-268micron |
| hole shape | square hole |
Features of stainless steel wire mesh:
- High tension.Much higher than common polyester mesh,and this property is very stable
- Super Precision.Uniform wire diameter and aperture with extremely low difference
- Low Elongation.Very small elongation of wire mesh at high tension
- High Flexbility.The wire mesh will not lose elasticity at extreme tension
- High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
- Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
- Good Heat-melting Resistance.Special features of steel wire mesh.Suitable for heat-melting ink
- Good Solvent Resistance.To avoid the affects of any solvents to wire mesh and to ensure the safety of printing
Application of stainless steel wire mesh:
Stainless steel screen printing is suitable for direct platemaking, surface is surface substrate, such as: glass, ceramics, metal, plastic, rubber, printing circuit, etc.Especially suitable for use in harsh environments, multicolor overprinter, mass printing, step printing, precision printing.Due to the small size of wire mesh, high mesh can be woven, and the strength and elastic modulus of large, good plane stability.However, the wire mesh is rigid, easy to generate indentation when impacted, poor resilience is not suitable for restoration, and it is not suitable for printing substrate with poor flatness.
Specification of stainless steel wire mesh:
| Mesh/inch | Wire diameter (inch) | Aperture (inch) | Open area | Weight (Sqaure meter) |
| 1*1 | 0.080 | 0.920 | 92.0 | 2.0 |
| 2*2 | 0.063 | 0.437 | 87.4 | 2.5 |
| 3*3 | 0.054 | 0.279 | 83.8 | 2.7 |
| 4*4 | 0.047 | 0.203 | 81.2 | 2.7 |
| 5*5 | 0.041 | 0.159 | 79.5 | 2.6 |
| 10*10 | 0.024 | 0.076 | 74.9 | 1.8 |
| 12*12 | 0.020 | 0.064 | 75.9 | 1.5 |
| 14*14 | 0.020 | 0.052 | 71.9 | 1.75 |
| 16*16 | 0.018 | 0.045 | 71.2 | 1.6 |
| 18*18 | 0.016 | 0.0398 | 69.4 | 1.4 |
| 20*20 | 0.009 | 0.041 | 76.0 | 0.57 |
| 30*30 | 0.012 | 0.0382 | 63.9 | 1.35 |
| 40*40 | 0.0098 | 0.015 | 72.1 | 1.25 |
| 50*50 | 0.0079 | 0.0121 | 36.7 | 1.0 |
| 60*60 | 0.0047 | 0.012 | 38.7 | 0.42 |
| 80*80 | 0.0047 | 0.0107 | 45.5 | 0.58 |
| 100*100 | 0.0039 | 0.006 | 59.8 | 0.50 |
| 120*120 | 0.0027 | 0.0056 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.0043 | 41.6 | 0.27 |
| 165*165 | 0.0018 | 0.0043 | 50 | 0.167 |
| 180*180 | 0.0019 | 0.0036 | 64.5 | 0.22 |
| 200*200 | 0.0019 | 0.003 | 60.6 | 0.24 |
| 250*250 | 0.0012 | 0.0028 | 49.8 | 0.11 |
| 270*270 | 0.0014 | 0.0023 | 60 | 0.16 |
| 300*300 | 0.0012 | 0.0022 | 57 | 0.13 |
| 325*325 | 0.0014 | 0.0017 | 55.3 | .0.20 |
| 400*400 | 0.0012 | 0.0013 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.001 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.0008 | 55.0 | 0.10 |
