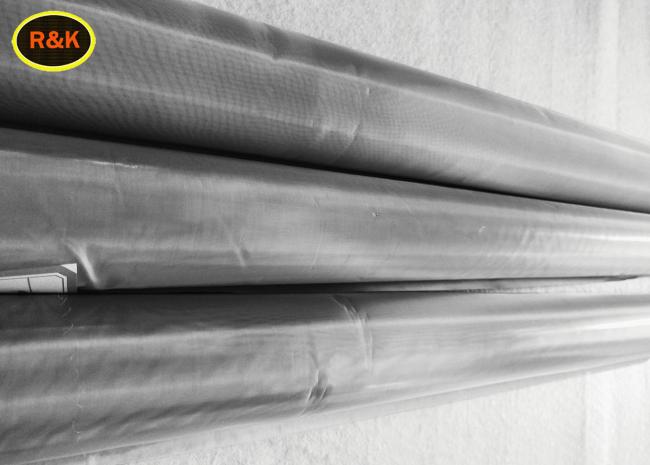

400 Mesh 23Um Stainless Steel Screen Printing Mesh for Antenna Printing
400 Mesh 23Um Stainless Steel Screen Printing Mesh for Antenna Printing
Description of the stainless steel screen printing mesh:
Each Mesh fabric has specific characteristics that suit different requirements.
We specialize in processing high quality fabrics with outstanding characteristics and low tolerances.
Choose which kind of mesh fabrics according to your requirements and conditions of use.
We have the highest quality printing mesh and we look forward for your more valuable advice.
Precision fabrics offer significant benefits when printing fine structures and large flat surfaces.
Features of stainless steel wire mesh:
Calendered fabrics have great benefits for printing fine structures and large flat surfaces.
High-strength calendered stainless steel fabric
400 Mesh have higher precision than other lower mesh.
The wire diameter is more finer.
Application of stainless steel wire mesh:
-Car printing
-Solar printing
-Multi-layer ceramic capacitors
-Concentrator printing
-Glass Printing
-Chip and MEMS Printing
-Antenna Printing
-Conductor board Printing
-Sensor Technology printing
-PCB,LCD,PDP Printing
Specification of the stainless steel screen printing mesh:
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
